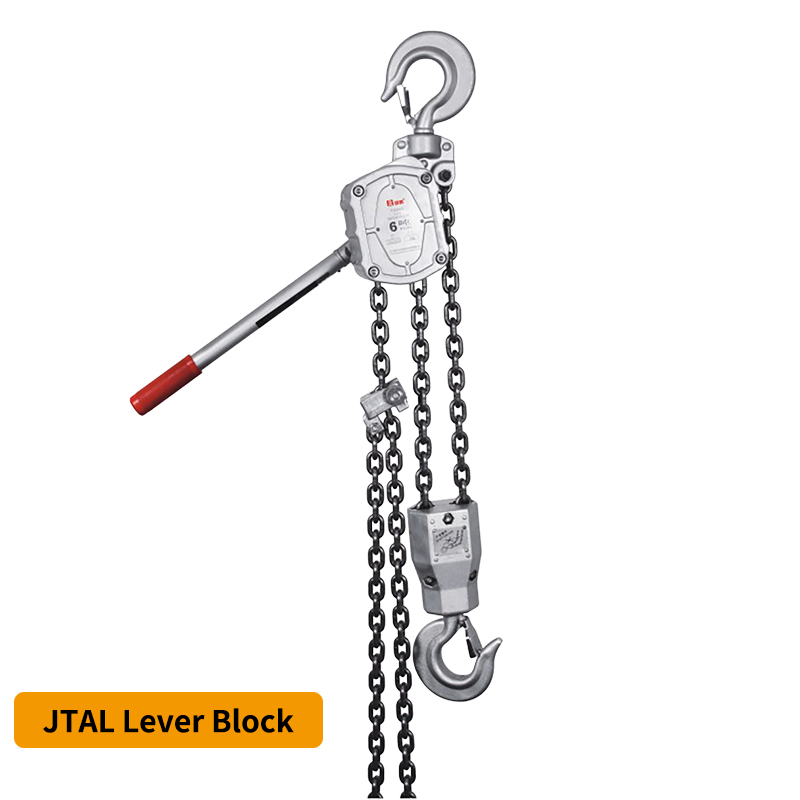

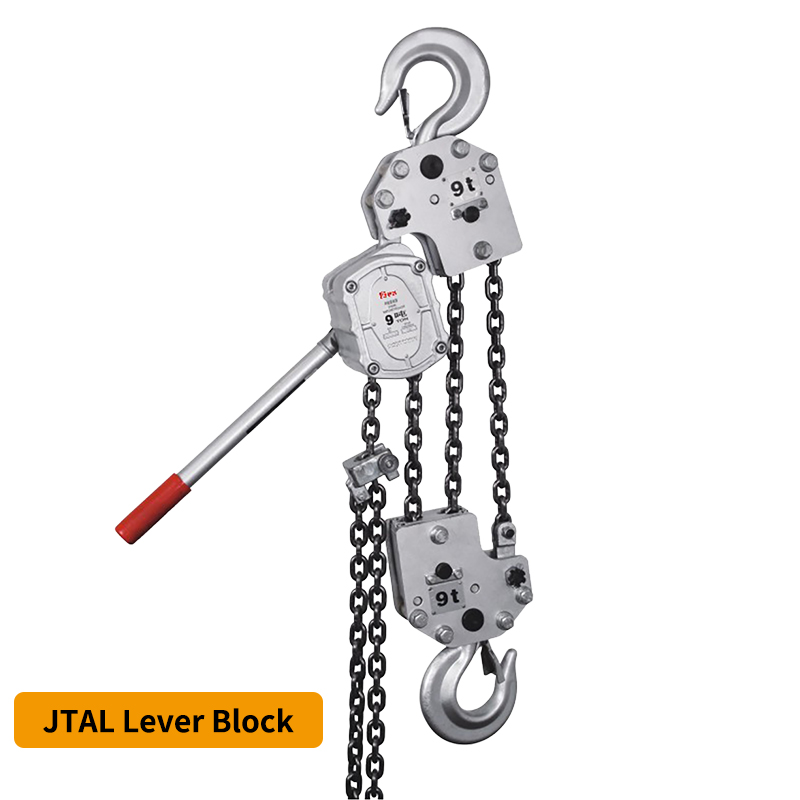

JTAL Powerline Puller Lever Hoist, 3T to 12T

The safety factor is more than 2.5 times;
Small size, light weight, easy to carry;
High efficiency, low operating force;
Easy to maintain and durable to use;
Made of high strength aluminum alloy & sealed to ensure the safety;
Adopts double pawl to improve the safety and reliability;
Split handle type, easy to carry the prodect; when overloaded, the spanner will bend to play a warning role;
Using brake clutch device, the chain can rotate freely when non-load and adjust the position of bottom hook easily to improve the work efficiency;
The end of the load chain is equipped with adjustable anchor ring limit device, which can adjust the limit position quickly according to the use condition & ensure the safety of operation.



Model JTAL-D3 JTAL-D6 JTAL-D9 JTAL-D12
Capacity t 3 6 9 12
Standard m 1.5 1.5 1.5 1.5
Running test kN 36.8 73.5 110 147
Effort required to lift max load N 240 260 280 280
Load chain diameter mm 8 8 8 8
Falls 1 2 3 4
Min distance between hooks(H) mm 445 575 770 720
Dimensions(mm) A 205 205 205 205
B 125 125 125 125
C 149 195 253 318
D 460 460 460 460
E 31 39 45 53
φ 45 55 65 70
N.W. kg 13.2 20.5 35.5 36.5
Loading Chain Weight/Meter kg 1.42 2.84 4.26 5.68
