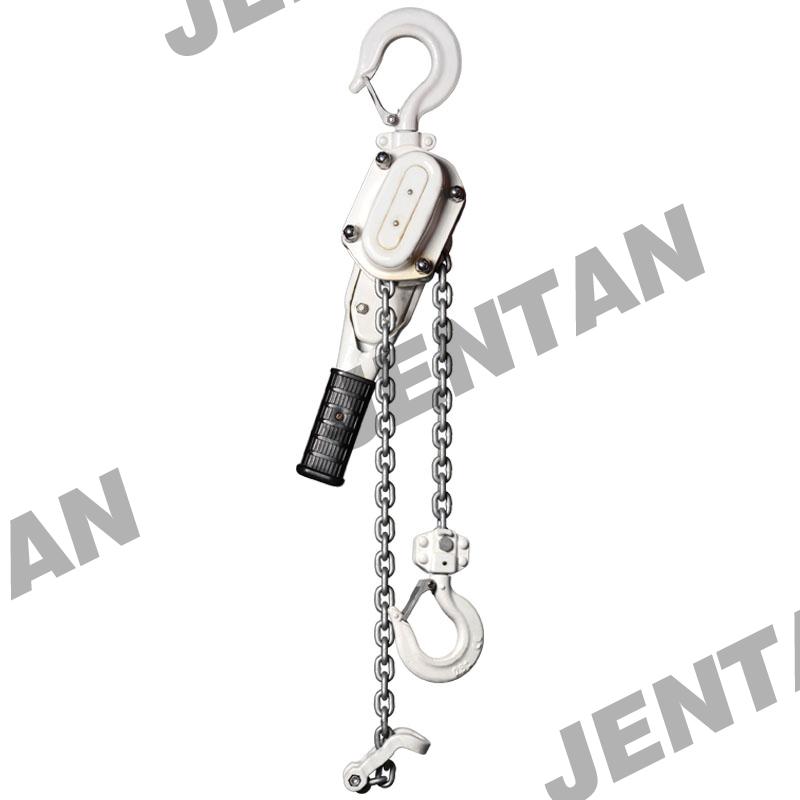

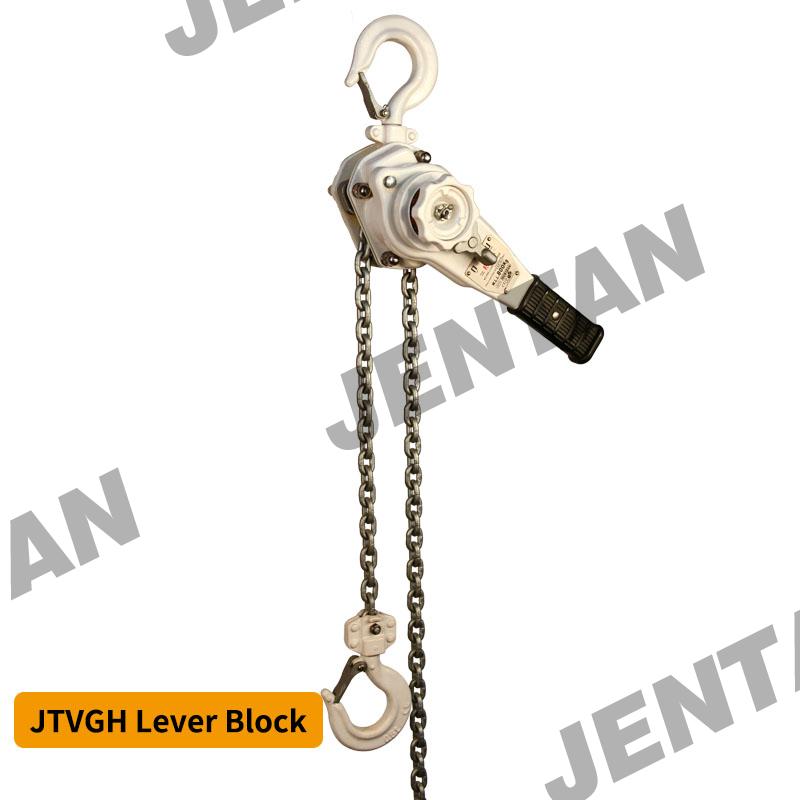

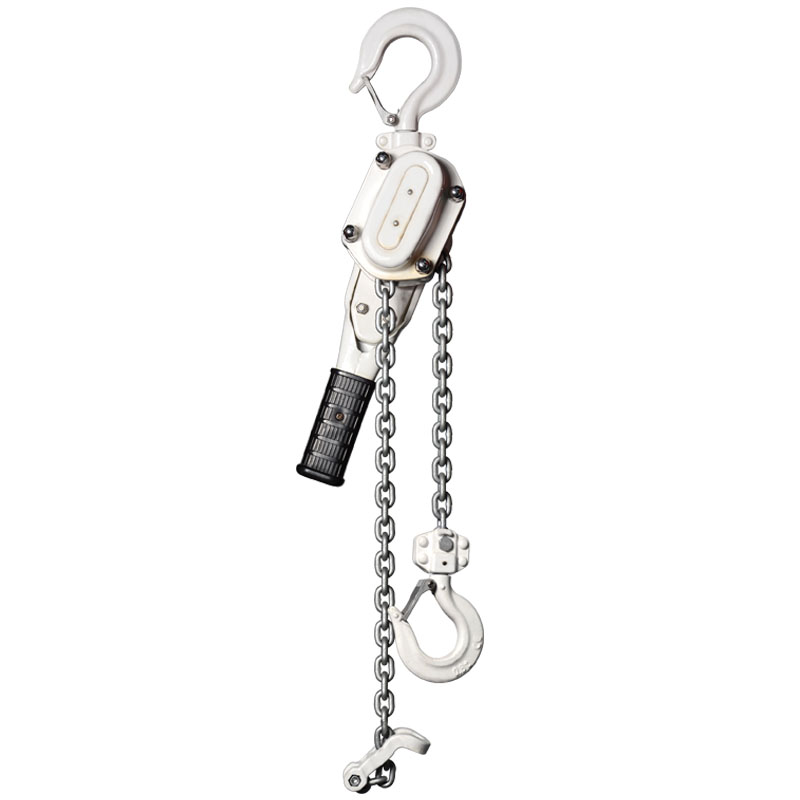

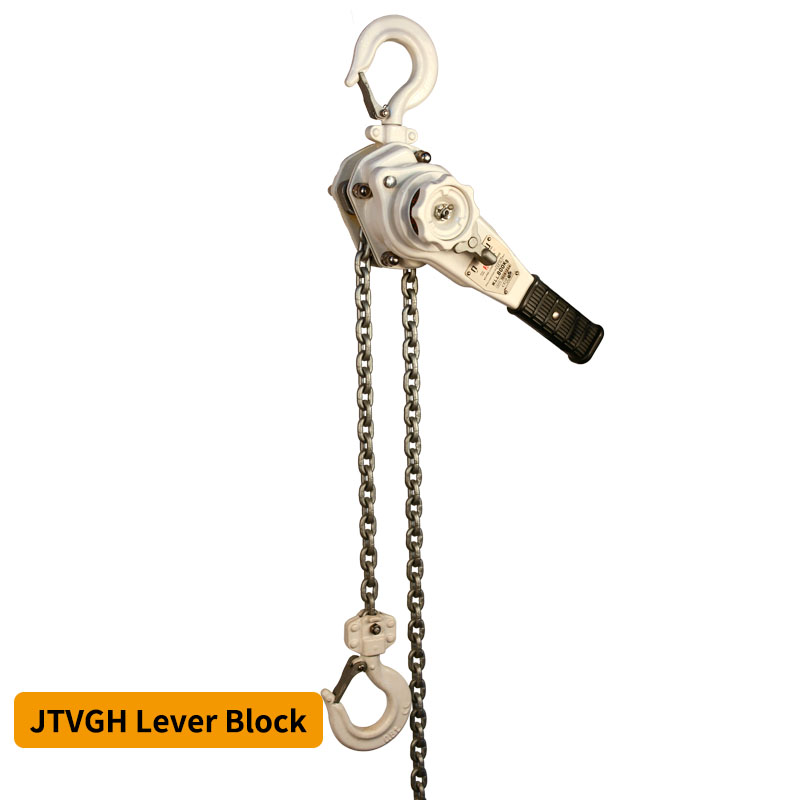

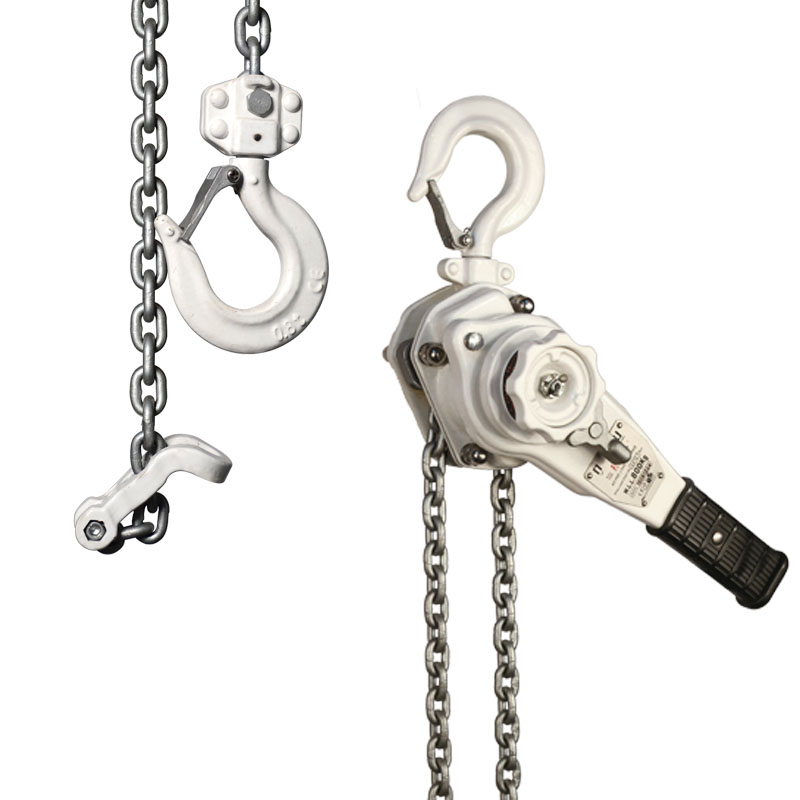

JTVG-H Corrosion Resistant Lever Block
The VG-H subsea lever hoist is a marine grade hoist specially built for underwater, offshore, and high-corrosion environments. Designed and tested over years with industry experts, it meets the needs of marine, oil and gas operations. The hoist is coated with corrosion resistant finishes and fitted with sealed internal parts for maximum safety and long service life under extreme conditions.
Load range: 0.8 ton – 9 ton.
Product Features
• Designed for submerged underwater use in subsea and marine operations.
• Passed thousands of hours of salt spray testing.

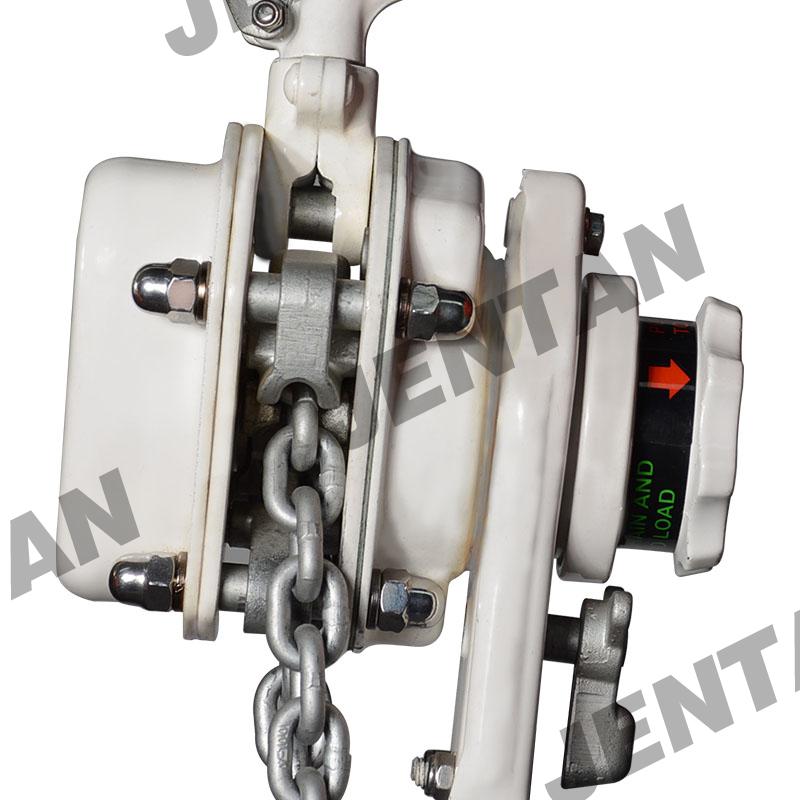

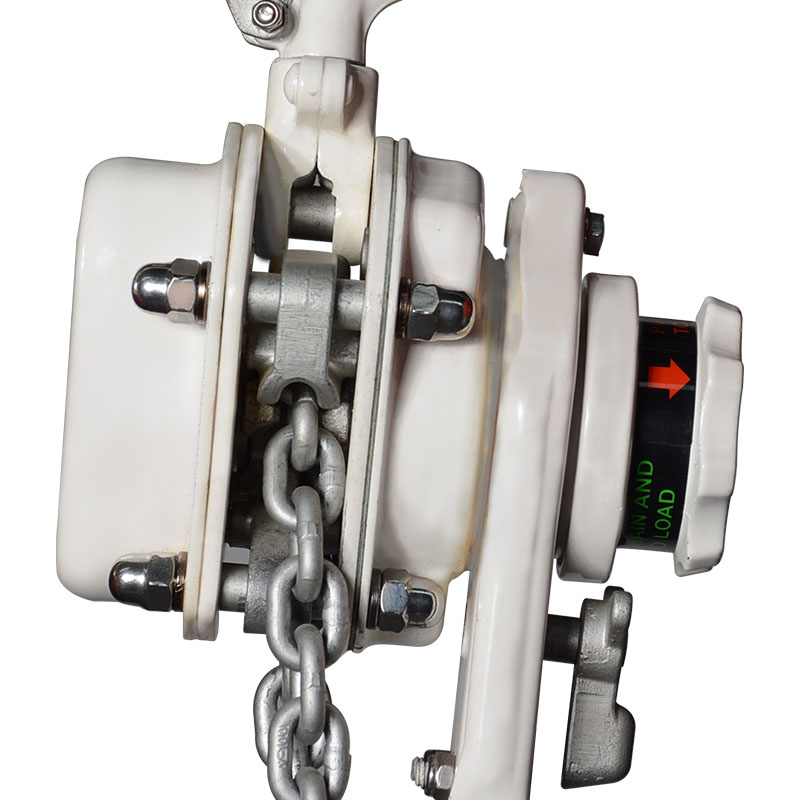

• Fully sealed brake system with stainless steel nuts, double pawls and springs.
• Components and coating selected to resist corrosion from seawater and harsh chemicals.
• Fitted with adjustable chain stopper to meet local underwater lifting codes.
• Optional overload protection system available.
• High-strength load chain and precision internal gear system.
• Easy to operate in wet, muddy, or gloved conditions.
• Suitable for offshore platforms, underwater maintenance, marine engineering, diving operations, and shipyards.
| VG-H Specifications Sheet | ||||||||||||||
| Model | W.L.L(t) | LIFT(m) | Proof Load(t) | Lever Force kg(n)(ibs) | Load Chain | Dimensions(mm) | N.W.(kg) | Additional Weight Per Lift(kg) | ||||||
| Falls | Size | H | A | B | C | D | L | kg | ||||||
| VG-0.8 | 0.8 | 1.5 | 1.2 | 22(215)(48) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VG1 | 1 | 1.5 | 1.5 | 30(294)(66) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VG1.6 | 1.6 | 1.5 | 2.4 | 31(304)(68) | 1 | 7.1x19.9 | 350 | 168 | 104 | 126 | 32 | 265 | 8.5 | 1.1 |
| VG3.2 | 3.2 | 1.5 | 4.8 | 38(372)(84) | 1 | 10x28 | 395 | 201 | 118 | 159 | 35 | 415 | 14.2 | 2.3 |
| VG6.3 | 6.3 | 1.5 | 9.5 | 39(382)(86) | 2 | 10x28 | 540 | 201 | 118 | 218 | 44 | 415 | 26 | 4.6 |
| VG9 | 9 | 1.5 | 13.5 | 40(392)(88) | 3 | 10x28 | 680 | 201 | 118 | 298 | 60 | 415 | 40 | 6.9 |
