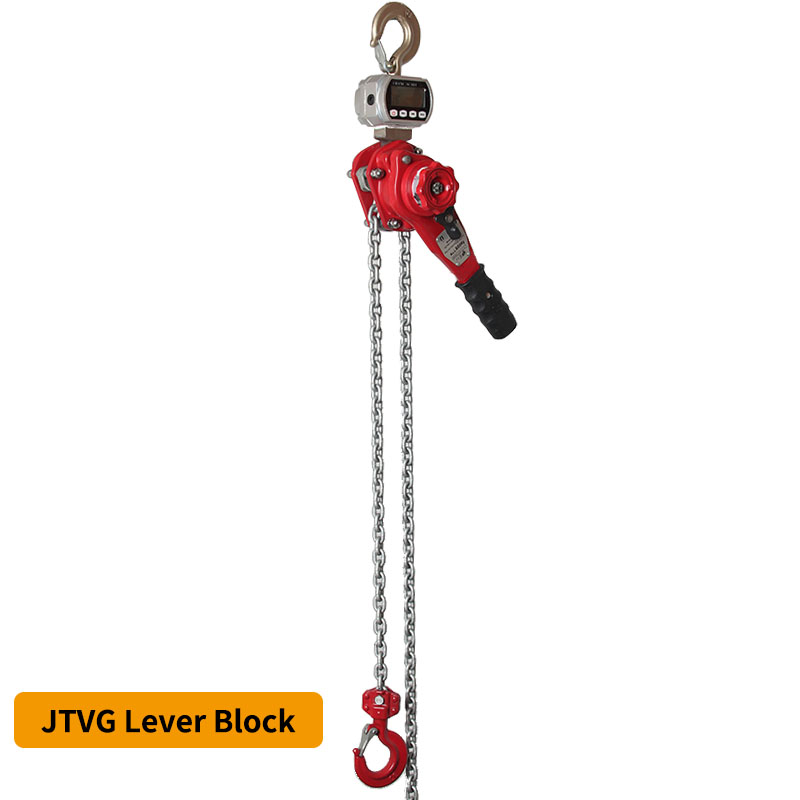

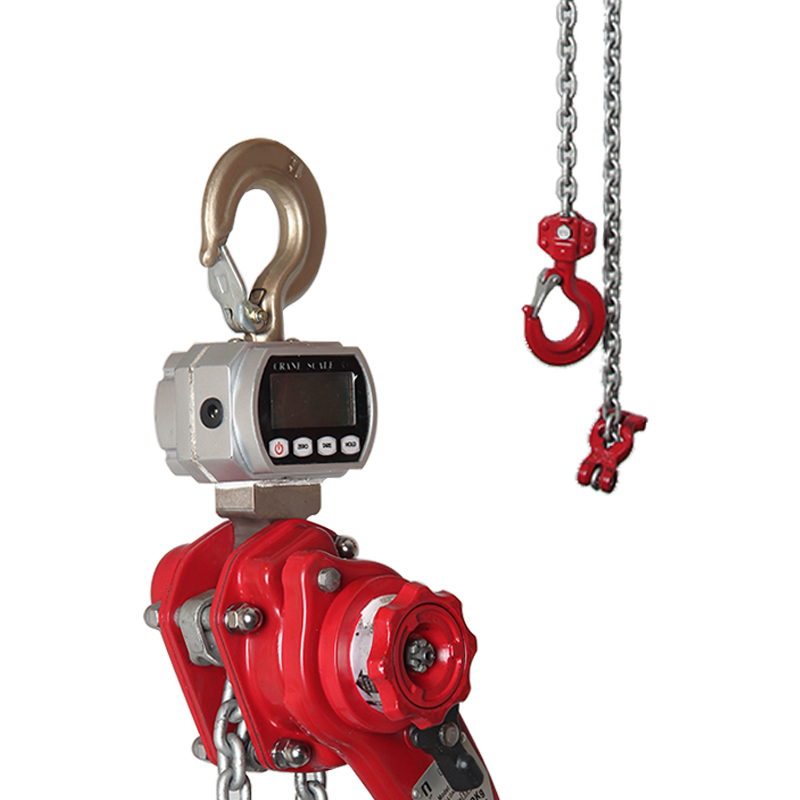

JTVG Load Cell Lever Hoist – Built to Match Leading Japanese LB Style
Product Overview
VG Pro Lever Hoist is built for tough industrial lifting. Designed with all-steel construction, heat-treated alloy chain, and forged 360° rotating hooks, this hoist offers durability and safety in heavy-duty use.
Its It adopts a structure benchmarked against global premium LB-type models, delivering high reliability and lifting safety., ensures smooth operation and longer service life.
Compliant with EN13157 standard, each unit is load tested to 150% of rated capacity and shipped with certification.
Load range: available upon request (0.75T ~ 9T).
Product Features

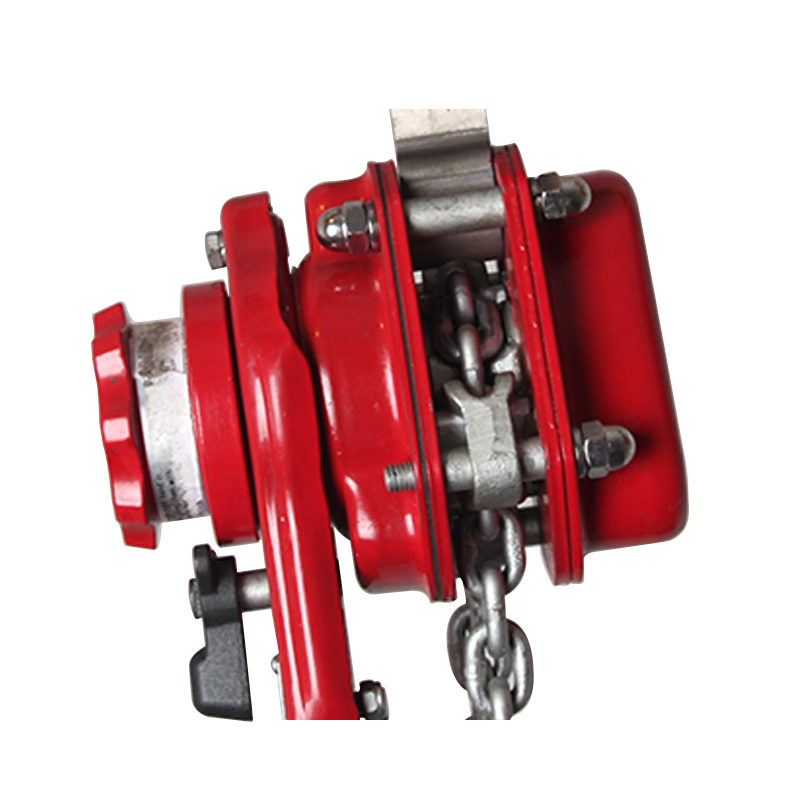

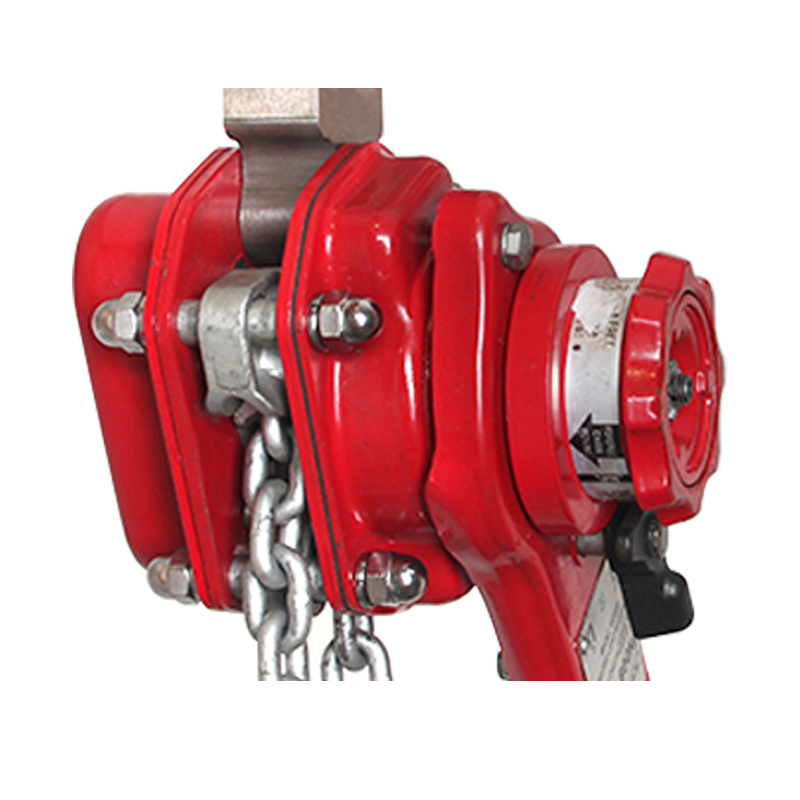

• All-steel construction with a rugged gear case and reinforced handwheel ensures exceptional toughness.
• Reinforced double pawl brake system with large-diameter pawl springs provides stable and safe load holding.
• Unique curling hand chain feed design allows smooth chain entry into the sprocket from multiple angles and directions.

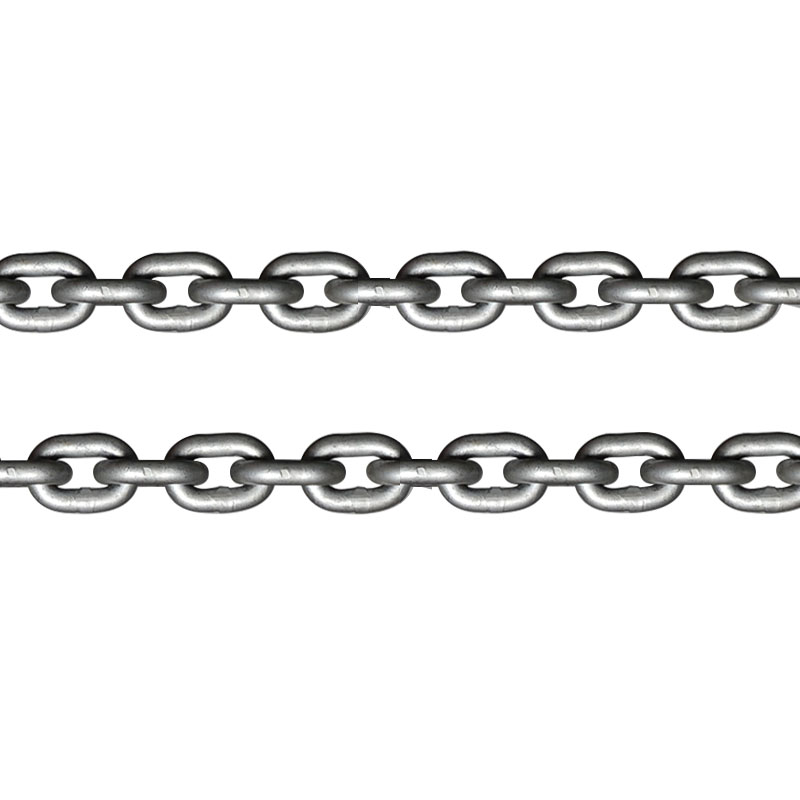

• GBO alloy load chain, heat-treated for strength, wear resistance, and long service life.
• Forged alloy steel hooks, industrial-grade, rotate 360 degrees for flexible rigging and increased safety. Hooks stretch gradually under overload to provide a visual safety alert.
• Sealed roller bearings improve lifting efficiency and extend product lifespan.
• Certified and tested: Each hoist is load-tested to 150% of rated capacity, with certificate included.
| VG Specifications Sheet | ||||||||||||||
| Model | W.L.L(t) | LIFT(m) | Proof Load(t) | Lever Force kg(n)(ibs) | Load Chain | Dimensions(mm) | N.W.(kg) | Additional Weight Per Lift(kg) | ||||||
| Falls | Size | H | A | B | C | D | L | kg | ||||||
| VG-0.8 | 0.8 | 1.5 | 1.2 | 22(215)(48) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VG1 | 1 | 1.5 | 1.5 | 30(294)(66) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VG1.6 | 1.6 | 1.5 | 2.4 | 31(304)(68) | 1 | 7.1x19.9 | 350 | 168 | 104 | 126 | 32 | 265 | 8.5 | 1.1 |
| VG3.2 | 3.2 | 1.5 | 4.8 | 38(372)(84) | 1 | 10x28 | 395 | 201 | 118 | 159 | 35 | 415 | 14.2 | 2.3 |
| VG6.3 | 6.3 | 1.5 | 9.5 | 39(382)(86) | 2 | 10x28 | 540 | 201 | 118 | 218 | 44 | 415 | 26 | 4.6 |
| VG9 | 9 | 1.5 | 13.5 | 40(392)(88) | 3 | 10x28 | 680 | 201 | 118 | 298 | 60 | 415 | 40 | 6.9 |
