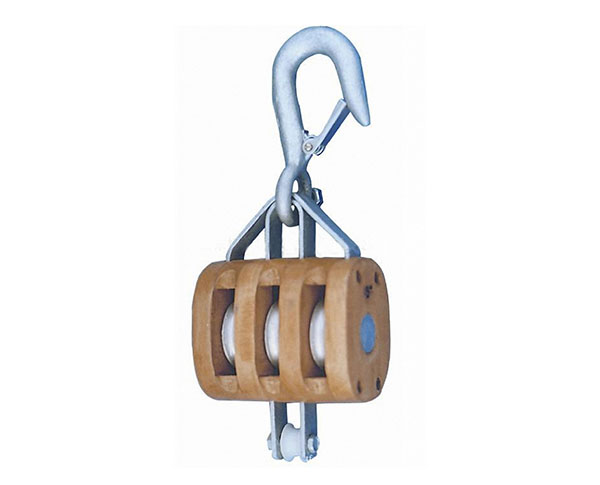

JTWP-A3 Regular Wood Pulley(triple wheel with hook)
The JTWP-A3 Regular Wood Pulley is a premium triple wheel lifting block designed for traditional rigging, marine applications, and heavy duty material handling. Combining classic craftsmanship with modern engineering standards, this wooden tackle block offers smooth rope tracking and efficient load distribution. It is equipped with a heavy duty forged steel hook featuring a safety latch to ensure secure attachment and maximum operational safety during pulling or lifting tasks.
The JTWP-A3 triple wheel wooden block is widely used in maritime rigging, historical ship restoration, architectural construction, and rural lifting operations. It is the perfect choice for users who require dependable mechanical advantage combined with the unique properties of wood construction.
| Model | Size | S.W.L. | For Wire Dia | Packing Dimension | Qty/case | Weight |
| (in) | (lbs) | (in) | (cm) | (pcs) | (kg/pc) | |
| J7903 | 3 | 1200 | 3/8 | 57x56x73 | 100 | 1.2 |
| J7904 | 4 | 1800 | 1/2 | 99x39x70 | 100 | 2.0 |
| J7905 | 5 | 2400 | 5/8 | 80x67x67 | 48 | 3.4 |
| J7906 | 6 | 3200 | 3/4 | 96x67x54 | 48 | 6.75 |
| J7908 | 8 | 4800 | 1 | 113x82x75 | 30 | 9.17 |
| J79010 | 10 | 8000 | 1-1/8 | 101x71x95 | 15 | 15.5 |
| J79012 | 12 | 10000 | 1-1/4 | 106x83x73 | 8 |
26 |
