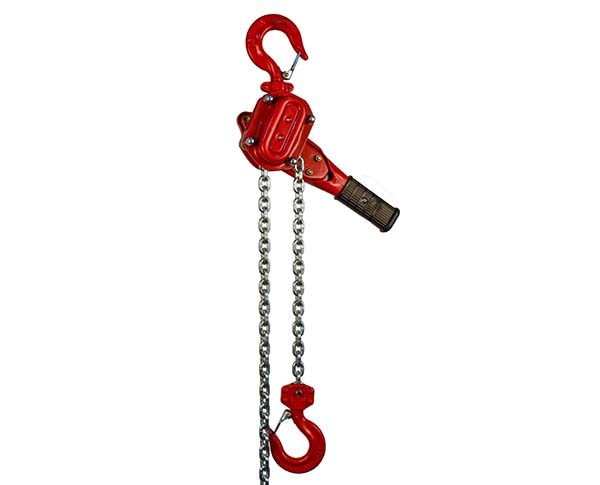

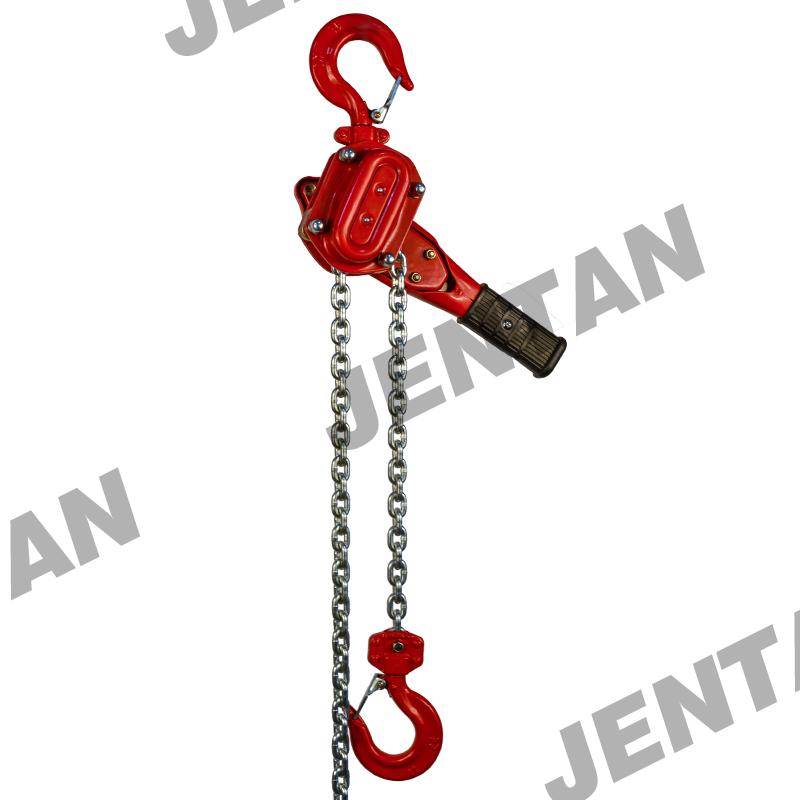

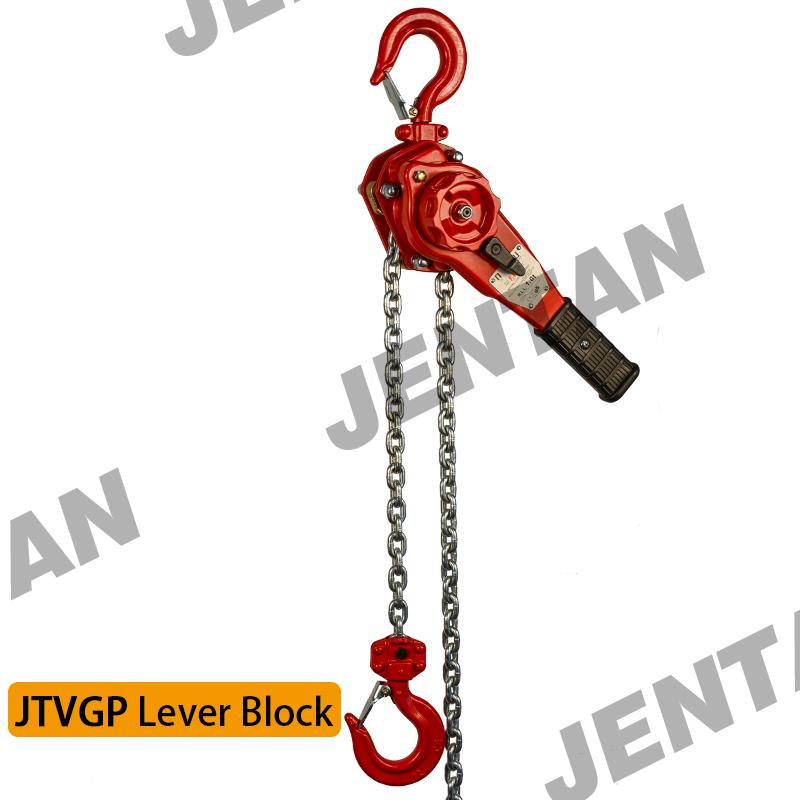

JTVGP Short Handle Lever Block
Product Overview
The JTVGP Short Handle Lever Hoist is specially designed for tight spaces, vertical or horizontal lifting, and one-hand operation in confined areas. Its compact body, low headroom, and 360-degree rotating handle make it ideal for use in construction, shipbuilding, maintenance, and outdoor fieldwork.
It offers enhanced durability, safety, and easy maintenance through high-precision engineering and safety-certified parts.
Load range: available upon request.
Complies with EN 13157 standard, tested to exceed 1500 cycle endurance.
Product Features
• Compact design with short handle, easy to use in narrow or low-clearance areas.
• 360° rotating handle for flexible operation at any angle or position.

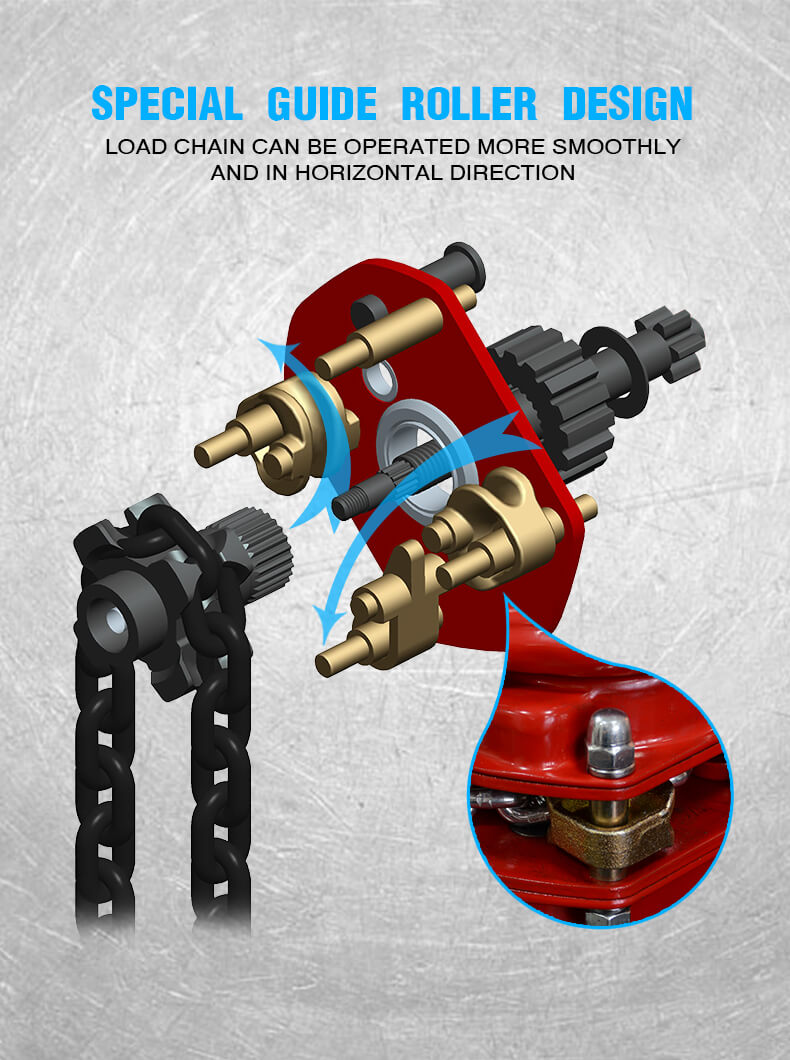

• Double load chain guide rollers improve chain alignment and smooth lifting.

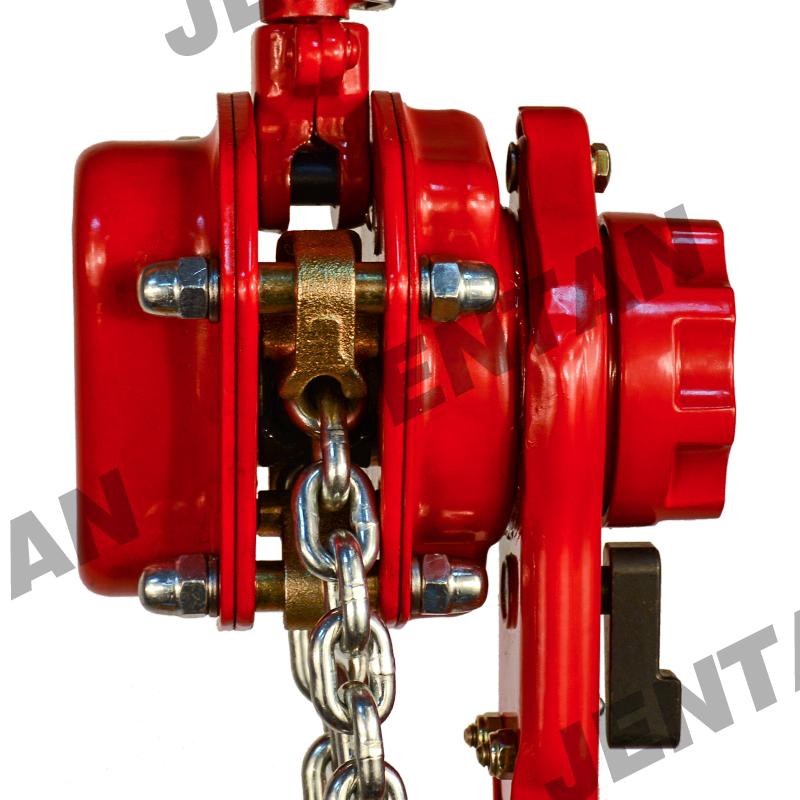

• Acorn nuts on covers protect internal bolts and enhance product maintenance.
• High precision machined gears for greater strength and toughness.
• Impact-resistant gear cover increases durability against drops and collisions.
• Double pawl brake system with reinforced ratchet and brake disc for secure load holding.
• Low-friction power transmission makes operation smoother and easier to maintain.

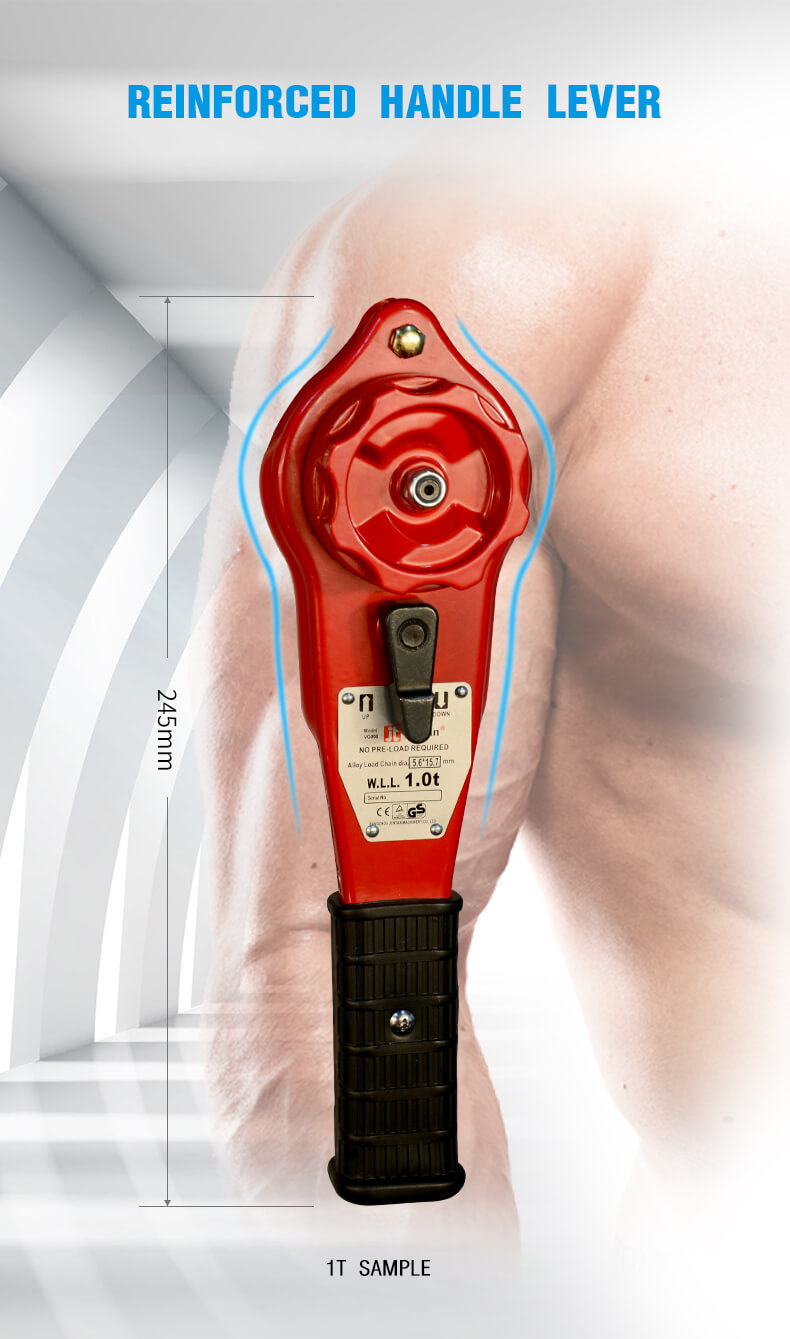

• Ribbed side plates increase the body strength of the lever.
• Forged alloy steel hooks with safety latches, strong and reliable under heavy loads.
• High precision T8 load chain, heat treated for strength and fatigue resistance.
• Reinforced chain end connection, tested to 2.5 times rated capacity.
• Endurance proven to far exceed EN 13157 standard with over 1500 lift cycles.

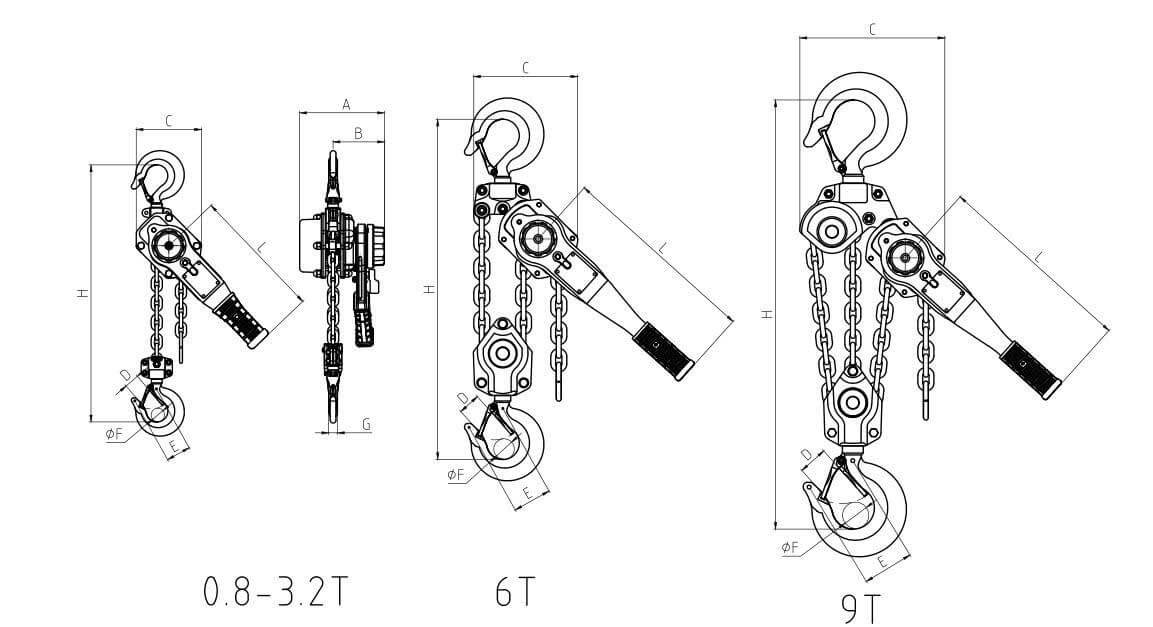

| VGP Specifications Sheet | |||||||||||||||||
| Model | W.L.L(t) | LIFT(m) | Proof Load(t) | Lever Force kg(n)(ibs) | Load Chain | Dimensions(mm) | N.W.(kg) | Additional Weight Per Lift(kg) | |||||||||
| Falls | Size | H | A | B | C | D(c/w latch kits） | E | F | G | L | kg | ||||||
| VG-P0.8 | 0.8 | 1.5 | 1.2 | 22(215)(48) | 1 | 5.6x17 | 300 | 150 | 100 | 119 | 29 | 50 | 26 | 16 | 245 | 5.5 | 0.7 |
| VG-P1 | 1 | 1.5 | 1.5 | 30(294)(66) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 29 | 50 | 26 | 16 | 245 | 5.5 | 0.7 |
| VG-P1.6 | 1.6 | 1.5 | 2.4 | 31(304)(68) | 1 | 7.1x20 | 350 | 168 | 104 | 126 | 30 | 52 | 29 | 20 | 265 | 7.8 | 1.1 |
| VG-P3.2 | 3.2 | 1.5 | 4.8 | 38(372)(84) | 1 | 10x28 | 395 | 201 | 118 | 159 | 36.5 | 60 | 35 | 25 | 415 | 13.4 | 2.3 |
| VG-P6.3 | 6.3 | 1.5 | 9.5 | 39(382)(86) | 2 | 10x28 | 540 | 201 | 118 | 218 | 40 | 78 | 45 | 34 | 415 | 25.8 | 4.6 |
| VG-P9 | 9 | 1.5 | 13.5 | 40(392)(88) | 3 | 10x28 | 680 | 201 | 118 | 298 | 54 | 99 | 56 | 44 | 415 | 38.8 | 6.9 |
