JTR-HL17 G100 Master Link with Flat
Product Overview
The JTR-HL17 G100 Master Link with Flat is designed for heavy-duty lifting applications, including use in chain slings, wire rope slings, and multi-leg rigging assemblies. The flat inner surface allows compatibility with crane hooks or multiple link configurations, ensuring proper seating and optimal load distribution.
This link is manufactured in Grade 100 alloy steel, meeting or exceeding the requirements of EN1677 and ASTM standards.
Product Features
-
Made from G100 quenched and tempered alloy steel, ensuring high tensile strength and long service life
-
Flat inner design allows better contact with crane hook saddle or additional connecting components
-
Ideal for 1-leg and 2-leg sling assemblies, as top link or master link
-
Proof tested to 2.5 times the Working Load Limit (WLL)
-
Batch code stamped for full traceability and safety verification
-
Finished with durable powder coating or zinc plating for corrosion resistance
-
Complies with EN 1677-4 and ASME B30.9

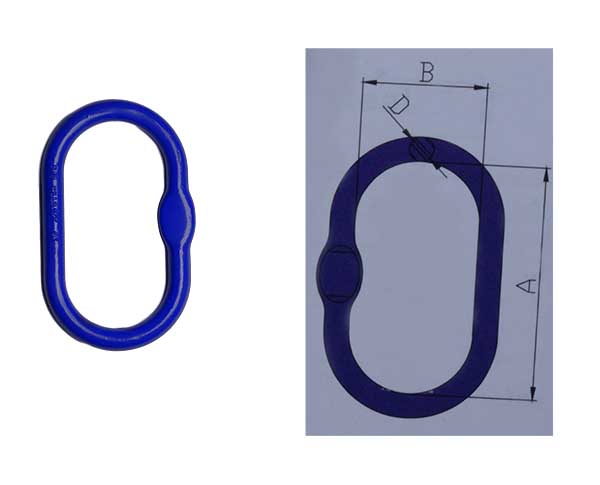

| Size | W.L.L | B.L | Dimension（mm） | (CHAINΦ) | Weight | ||||
| (t) | (t) | A | B | D | 1leg | 2legs | 3-4legs | kg/pc | |
| 10-10 | 1.4 | 5.6 | 80 | 50 | 10 | 5 | 5 | 5 | 0.14 |
| 13-10 | 2.3 | 9.2 | 110 | 60 | 13 | 6 | 6 | 6 | 0.34 |
| 16-10 | 3.5 | 14 | 110 | 60 | 16 | 7 | 7 | 7 | 0.53 |
| 18-10 | 5 | 20 | 135 | 75 | 18 | 8 | 8 | 8 | 0.83 |
| 22-10 | 7.6 | 30.4 | 160 | 90 | 23 | 10 | 10 | 10 | 1.6 |
| 26-10 | 10 | 40 | 180 | 100 | 27 | 13 | 13 | 13 | 2.46 |
| 32-10 | 14 | 56 | 200 | 110 | 33 | 16 | 16 | 16 | 4.14 |
| 36-10 | 25.1 | 100.4 | 260 | 140 | 36 | 19 | 19 | 19 | 6.22 |
| 45-10 | 30.8 | 123.2 | 340 | 180 | 45 | 22 | 22 | 22 | 12.85 |
| 50-10 | 40 | 160 | 350 | 190 | 50 | 26 | 26 | 26 | 16.55 |
| 56-10 | 60 | 240 | 400 | 200 | 60 | 32 | 32 | 32 | 27.01 |
| 72-10 | 81.5 | 326 | 460 | 250 | 70 | - | - | - | 45 |
