JTR-HL06 G80 European Swivel Self-Locking Hook
360° Swivel Design: The rotating head allows the load to position itself naturally, effectively preventing chain kinking or twisting during industrial chain hoist operations.
Automatic Safety Lock: The hook locks instantly when a load is applied and remains closed even if the tension is released, ensuring the highest safety standard for overhead lifting.
Superior Durability: Drop-forged from high-grade alloy steel and heat-treated to Grade 80 standards for exceptional strength and wear resistance.
Extensive Capacity Range: Available in sizes from 6-8 up to 32-8, supporting Working Load Limits (W.L.L.) from 1.12t to 31.5t.
Global Standard Compliance: As a specialized lifting hoist manufacturer, Jentan tests every hook to a 4:1 safety factor, making it suitable for rigorous construction, mining, and industrial lashing.

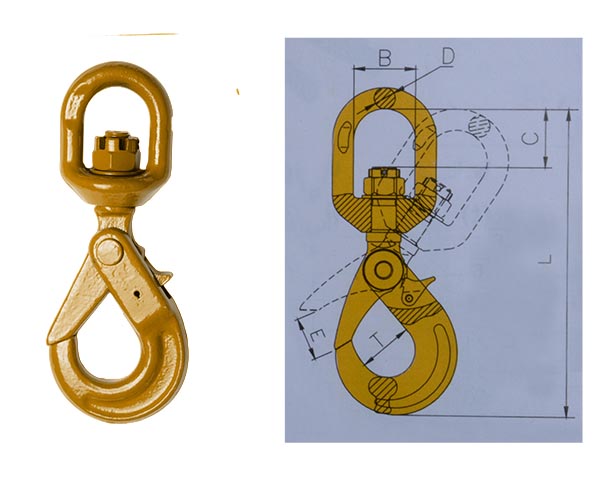

| G80 European Swivel Self-Locking Hook（TH-83） | |||||||||
| Size | W.L.L | B.L | Dimension（mm） | Weight | |||||
| (t) | (t) | B | C | D | L | T | E | （kg/pc） | |
| 6-8 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 | 0.71 |
| 7/8-8 | 2 | 8 | 35.5 | 26 | 12.5 | 210 | 46 | 34 | 1.1 |
| 10-8 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 | 2 |
| 13-8 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 | 4 |
| 16-8 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 | 7.3 |
| 20-8 | 12.5 | 50 | 72 | 61 | 26 | 418 | 98 | 83 | 11.6 |
| 22-8 | 15 | 60 | 95 | 95 | 33 | 527 | 100 | 88 | 16 |
| 26-8 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 | 21.5 |
| 32-8 | 31.5 | 126 | 140 | 146 | 52 | 777 | 166 | 150 | 79 |
