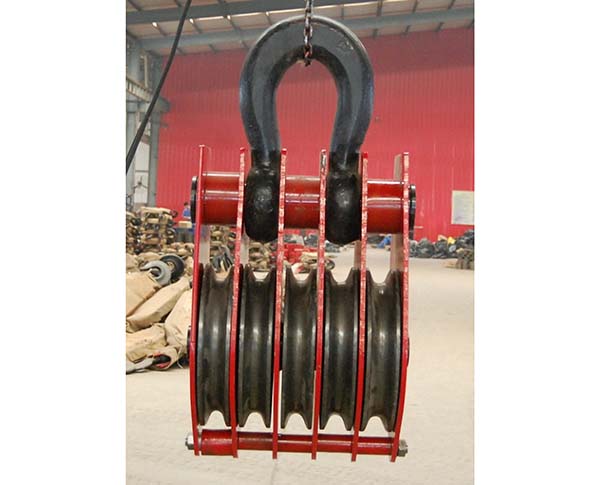

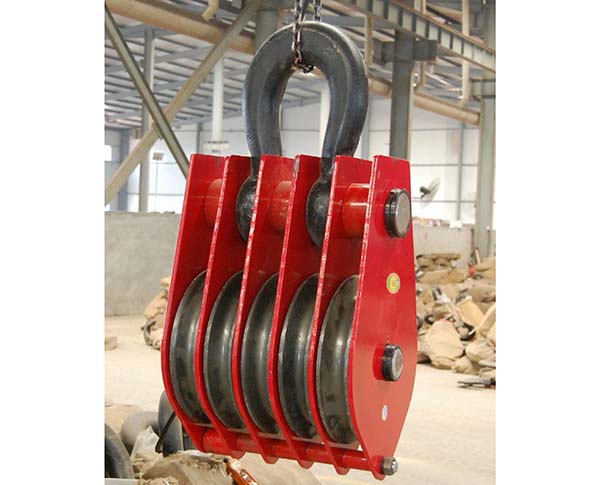

JTPB-F5 Rings Sories Closed Five Wheels Pulley

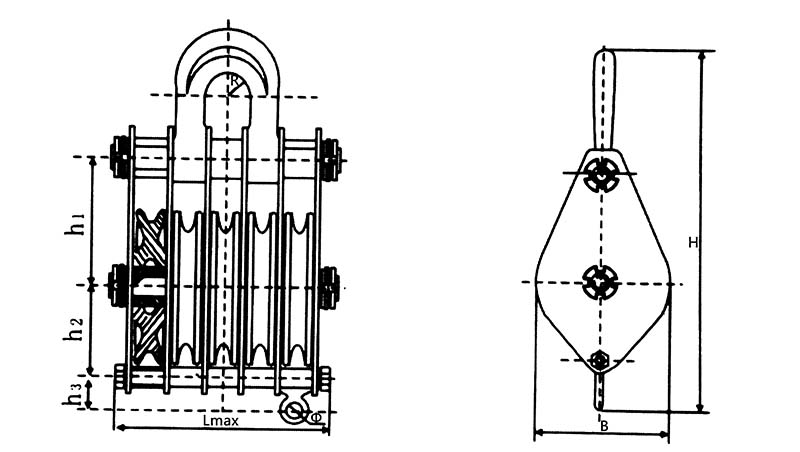

| 名称 | 型号 | 额定起重量 | 实验载荷 | 外形尺寸 | 钢丝直径 | 勾口和环腔尺寸 | 净重 | ||||||||
|
H |
H1 | B | Lmax | Φ | 适用 | 最大 | D | O | R1 | R | |||||
| 玉田款 吊钩（链环）型闭口式五轮滑车 | Model | t | KN | mm | mm | kg | |||||||||
|
HQD5-20 |
20 | 280 | 650 | - | 212 | 350 | 28 | 15.5 | 18.5 | - | - | - | 41 | 70 | |
|
HQD5-32 |
32 | 448 | 815 | - | 280 | 420 | 36 | 20 | 23 | - | - | - | 44 | 125 | |
|
HQD5-50 |
50 | 700 | 997 | - | 364 | 485 | 48 | 23 | 24.5 | - | - | - | 49 | 253.5 | |
|
HQD5-80 |
80 | 1040 | 1210 | - | 452 | 580 | 56 | 31 | 35 | - | - | - | 56 | 405 | |
