Home / Products / Pulley / JTPB-F3 Hook(Chain Link)Sories Closed Triple Wheels Pulley

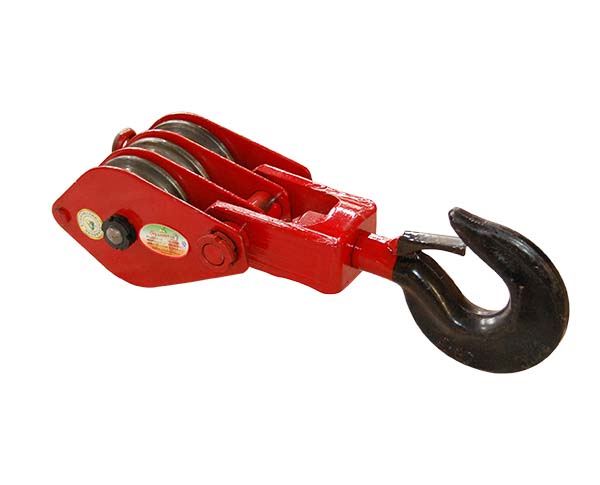

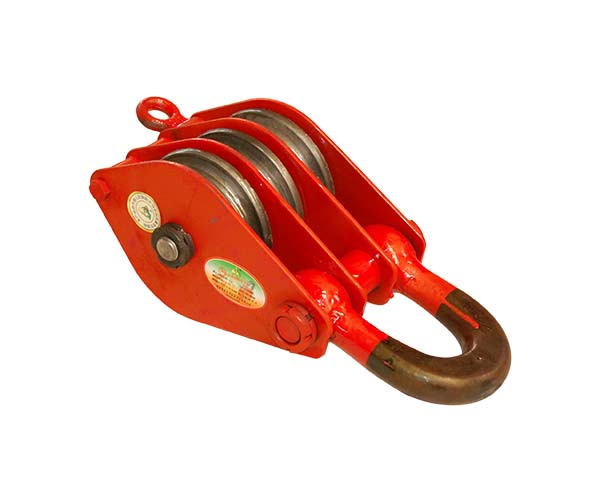

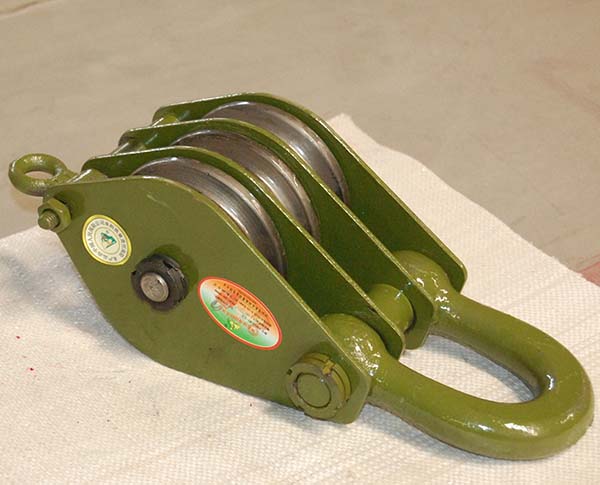

JTPB-F3 Hook(Chain Link)Sories Closed Triple Wheels Pulley

Get a product quote 400 711 1588
Call the service hotline PDF Download

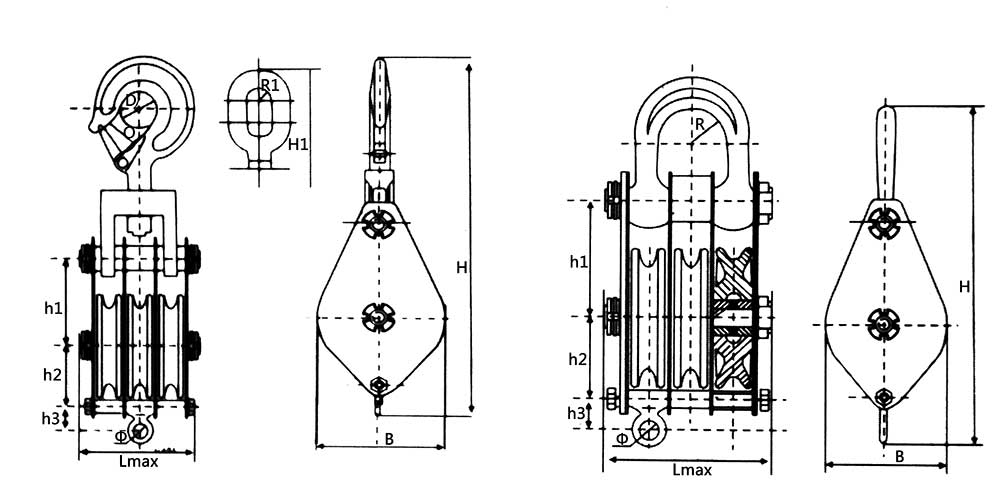

名称 型号 额定起重量 实验载荷 外形尺寸 钢丝直径 勾口和环腔尺寸 净重

H

H1 B Lmax Φ 适用 最大 D O R1 R
玉
田
款
吊
钩
（
链
环
）
型
闭
口
式
三
轮
滑
车 		Model t KN mm mm kg

HQG3-3.2

3.2 51.2 456 435 116 127 14 7.7 11 50 >=37 21 - 10

HQL3-3.2

3.2 51.2 456 435 116 127 14 7.7 11 50 >=37 21 - 14

HQG3-5

5 80 575 555 152 152 20 11 14 60 >=42 26.5 - 17.5

HQL3-5

5 80 575 555 152 152 20 11 14 60 >=42 26.5 - 14.5

HQG3-8

8 128 710 680 176 180 24 12.5 15.5 75 >=56 33.5 - 33

HQL3-8

8 128 710 680 176 180 24 12.5 15.5 75 >=56 33.5 - 20

HQG3-10

10 160 810 790 212 245 28 15.5 18.5 85 >=61 37.5 - 53

HQL3-10

10 160 810 790 212 245 28 15.5 18.5 85 >=61 37.5 - 40.5

HQG3-16

16 224 960 920 230 233 32 17 20 106 >=81 50 - 70

HQL3-16

16 224 960 920 230 233 32 17 20 106 >=81 50 - 58

HQG3-20

20 280 1080 1030 280 258 36 20 23 118 >=90 52.5 - 125

HQL3-20

20 280 1080 1030 280 258 36 20 23 118 >=90 52.5 - 82

HQG3-32

32 512 1480 1400 580 240 - 35 38 140 >=106 - - 300

HQL3-32

32 512 1480 1400 580 240 - 35 38 140 >=106 - - 138

HQD3-3.2

3.2 51.2 330 - 116 128 14 7.7 11 - - - 23.5 14.5

HQD3-5

5 80 435 - 152 156 20 11 14 - - - 28 15

HQD3-8

8 128 515 - 176 186 24 12.5 15.5 - - - 33 20.5

HQD3-10

10 160 610 - 212 216 28 15.5 18.5 - - - 40 41

HQD3-16

16 224 680 - 236 233 32 17 20 - - - 42 59

HQD3-20

20 280 770 - 280 266 36 20 23 - - - 47 83

HQD3-32

32 448 945 - 364 305 48 26 28 - - - 52 140

HQD3-50

50 700 1220 - 452 369 56 31 35 - - - 64 300
