JTEC-B Electric Chain Hoist
Product Overview
The JTEC-B Electric Chain Hoist is a compact industrial lifting solution available in both fixed hook suspension and motorized trolley configurations.
The fixed version is designed for vertical lifting from a stationary suspension point, while the trolley-mounted version combines powered lifting with horizontal travel along a suitable beam.
Both configurations use the same JTEC-B hoist platform, allowing customers to select the suspension type according to the required working range and installation conditions.
With an aluminum die-cast body, air-cooled motor, reliable braking system and integrated lifting protection, the JTEC-B is suitable for workshops, production lines, warehouses, crane systems and general industrial material handling.
Product Features
Two Installation Configurations
The JTEC-B can be supplied as a fixed hook suspension hoist or combined with a motorized trolley for horizontal beam travel.
Customers can select the appropriate version according to the required lifting and movement range.
Aluminum Die-Cast Body
The aluminum die-cast housing combines structural strength with relatively low weight and good heat dissipation for industrial operation.

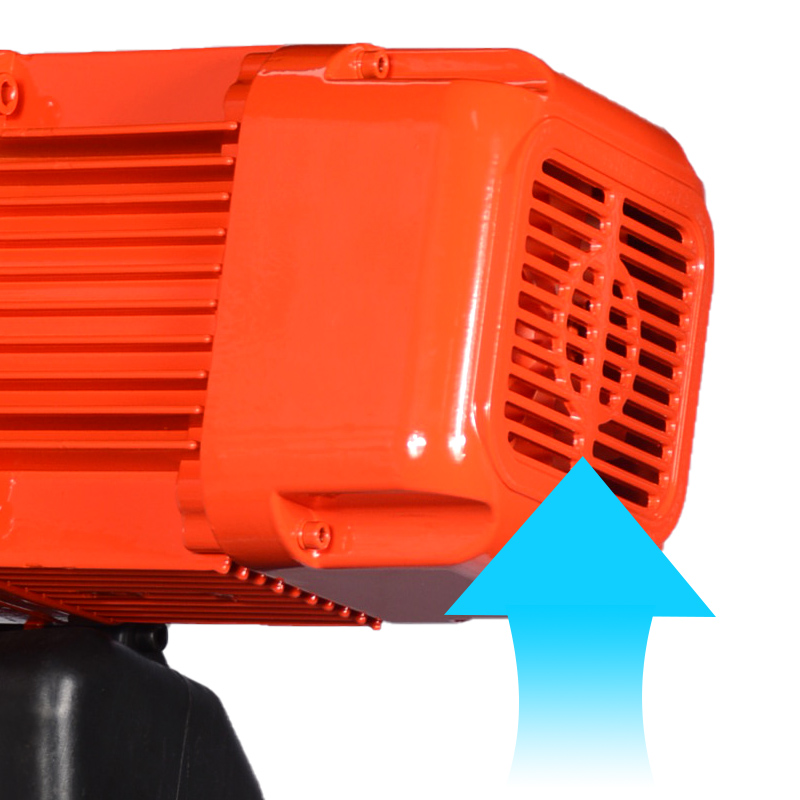

Air-Cooled Motor
The air-cooled motor helps dissipate heat during operation and supports reliable performance in regular industrial lifting applications.
Reliable Brake System
The braking system provides controlled stopping and secure load holding during lifting and lowering.
Friction Clutch
The friction clutch provides mechanical protection against excessive loading and abnormal operating conditions.
Upper and Lower Limit Switches
Upper and lower limit switches help prevent excessive hook travel during lifting and lowering.
Precision Gear Transmission
The low-noise gear structure provides smooth power transmission and stable lifting performance.
Load Chain Guide
The chain guide mechanism helps maintain smooth chain movement and stable engagement during operation.
G80 Alloy Steel Load Chain
High-strength G80 alloy steel load chain is used for reliable industrial lifting.
Durable Chain Bag
The chain bag collects the unloaded section of the load chain and helps maintain an organised working area.
IP55 Protection
The hoist body provides IP55 protection for industrial environments where resistance to dust and water ingress is required.
Available Configurations

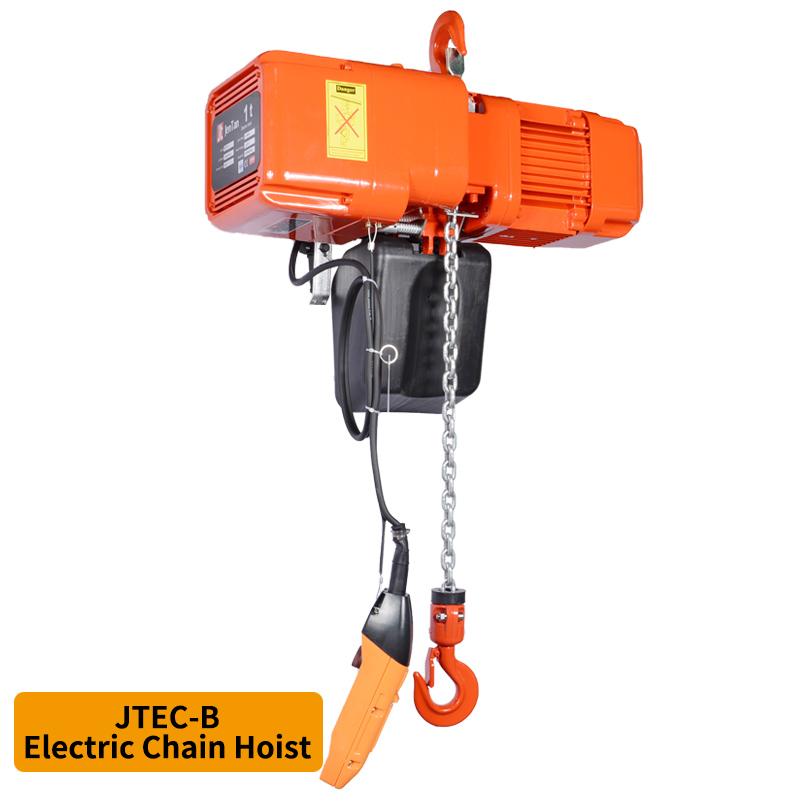

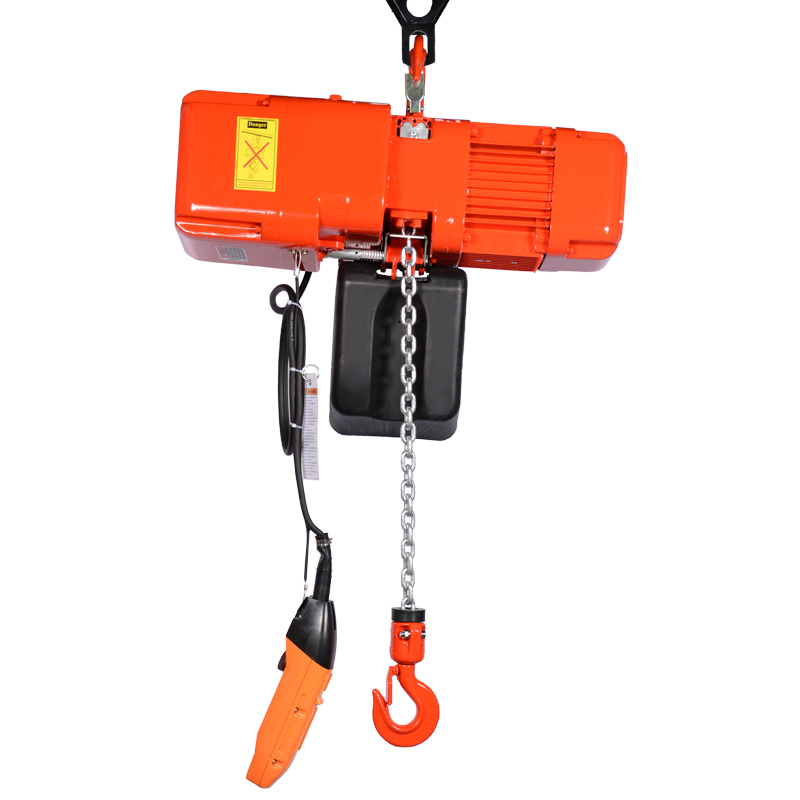

Fixed Hook Suspension
The fixed JTEC-B configuration is designed for vertical lifting from a stationary suspension point.
It is suitable where the lifting position remains relatively fixed and horizontal travel is not required.
Typical applications include:
• Fixed workstation lifting
• Machinery maintenance
• Equipment installation
• Production line workstations
• Temporary or stationary lifting points
The compact suspension arrangement also helps minimise installation complexity where only vertical lifting is required.

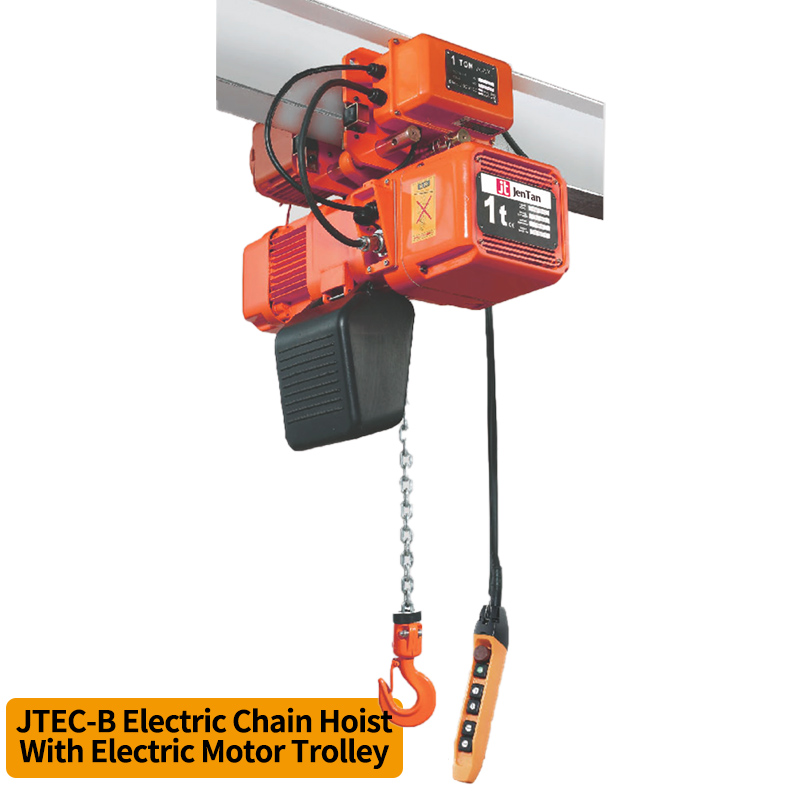

Motorized Trolley Version
The JTEC-B can also be supplied with a motorized trolley for powered horizontal travel along an I-beam or crane girder.
This configuration combines vertical lifting and horizontal movement, allowing the load to be transferred between different positions within the working area.
It is suitable for:
• Overhead crane systems
• Workshop material handling
• Production lines
• Machinery assembly
• Warehouse handling
• Repeated load transfer
Beam dimensions should be confirmed when selecting the trolley configuration to ensure correct installation.
Fixed vs Trolley Mounted JTEC-B
Both versions use the same JTEC-B electric chain hoist platform. The main difference is the required load movement.
Choose Fixed Hook Suspension When:
Only vertical lifting is required.
The lifting position remains fixed.
A compact and simple installation is preferred.
Choose the Motorized Trolley Version When:
The load needs to travel horizontally.
The hoist is installed on an overhead beam or crane system.
Materials need to be moved repeatedly between different work positions.
This allows customers to select the appropriate JTEC-B configuration without changing the basic hoist platform.
Application Scenarios
Manufacturing Workshops
The JTEC-B can be used for lifting components, tooling and machinery parts during manufacturing and assembly.
Overhead Crane Systems
The motorized trolley configuration can travel along a suitable beam to provide both vertical lifting and horizontal material movement.
Production Lines
Fixed or travelling configurations can be selected according to the required material flow and workstation layout.
Warehouses
The hoist can assist with lifting and moving heavy goods, equipment and components within warehouse facilities.
Equipment Maintenance
The fixed version is suitable for maintenance lifting points, while the trolley version provides additional movement where components need to be repositioned.
Machinery Installation
Controlled lifting and optional horizontal travel help position machinery and industrial components during installation.
How to Select the JTEC-B Configuration
1. Confirm the Rated Capacity
Select the required lifting capacity according to the maximum working load.
2. Confirm the Lifting Height
Specify the required hook travel according to the installation and working area.
3. Select the Suspension Type
Choose fixed hook suspension where only vertical lifting is required.
Choose a motorized trolley where horizontal beam travel is also required.
4. Confirm Beam Dimensions
For trolley-mounted configurations, provide the beam flange width and profile before ordering.
5. Confirm the Power Supply
Voltage, frequency and phase should be specified according to the installation site.
6. Confirm Control Requirements
Control configuration can be selected according to the operating and project requirements.
Why Choose JTEC-B Electric Chain Hoist?
The JTEC-B provides two practical installation options within one electric chain hoist platform.
The fixed version offers a compact solution for stationary lifting, while the motorized trolley version extends the working range by adding powered horizontal movement.
This allows distributors and industrial users to select different configurations according to their applications while maintaining the same core hoist series.
Contact JENTAN with the required capacity, lifting height, suspension type, power supply and beam dimensions for product selection and quotation.
