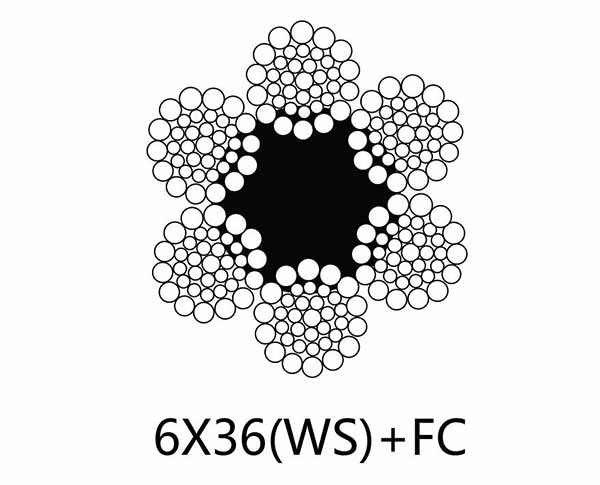

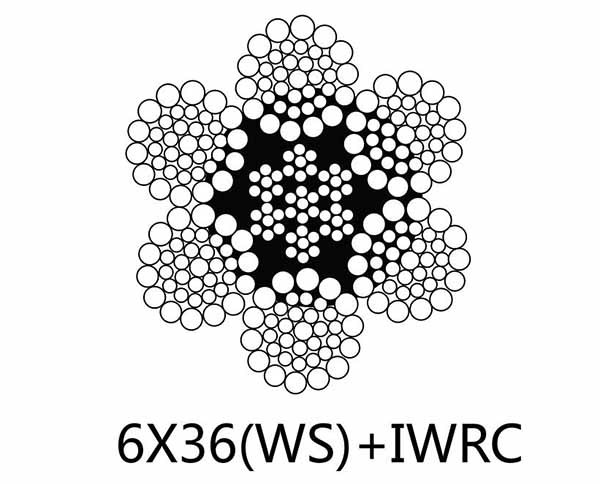

DIN3064, 6×36(WS)+FC,6×36(WS)+ IWRC

Specification:DIN3064, 6×36(WS)+FC, 6×36(WS)+ IWRC

Usage:Well Dirlling,Hoist,General Industry,Construction,Crane,Mine Lifting,High-furnace Hoisting,Cable Car

Nominal
Diameter
Approx
Weight
Nominal Tensile Strength
Minimum Breaking strength(KN)
kg/100m 1570N/mm² 1770N/mm²
mm FC IWRC FC IWRC FC IWRC
12 54.7 60.2 74.4 80.6 84 89.9
13 64.3 70.7 87.4 94.6 98.3 106
14 74.5 82 101 109 114 124
16 97.3 107 133 143 149 161
18 123 135 168 181 189 204
20 152 167 203 223 233 252
22 184 202 250 270 282 304
24 219 241 298 321 336 362
26 257 283 340 377 394 425
28 298 328 405 438 457 493
30 342 376 466 503 525 567
32 389 428 530 572 598 644
34 439 483 598 646 675 728
36 496 542 671 724 756 816
38 549 604 748 807 - -
40 608 669 828 894 - -
42 670 737 913 985 - -
44 736 810 1000 1080 - -
