PVC/PP/PE Coated Cables
Construction Diameter Unit weigh MBS(KN)
(mm) (kg/100m) 1770N/mm² 1770N/mm²

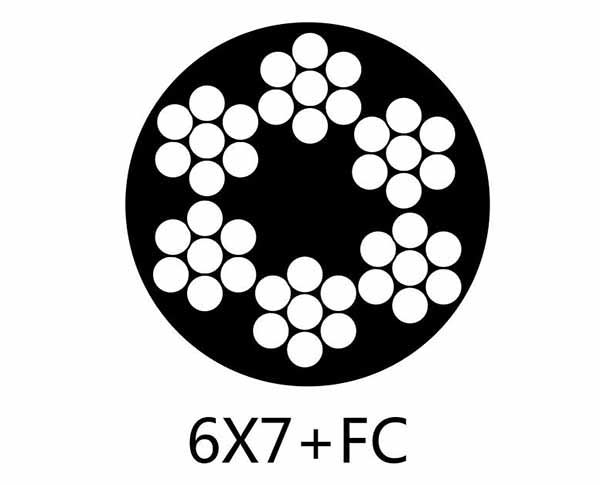

6×7+FC
PVC/PP/PE
1.5-2.5 1.27 1.32 1.46
2.0-3.0 2 2.35 2.6
3.0-4.0 4.02 5.29 5.86
3.0-5.0 5.04 5.29 5.86
4.0-5.0 6.74 9.41 10.4
4.0-6.0 8 9.41 10.4
5.0-6.0 10.18 14.7 16.3
6.0-8.0 16.04 21.1 23.4
8.0-10 26.95 37.6 41.6

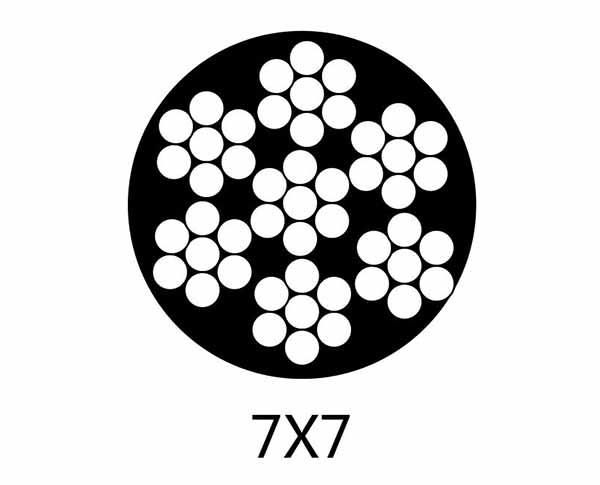

7×7
PVC/PP/PE
1.5-2.5 1.35 1.43 1.58
2.0-3.0 2.14 2.54 2.81
3.0-4.0 4.34 5.71 6.32
3.0-5.0 5.36 5.71 6.32
4.0-5.0 7.31 10.2 11.3
4.0-6.0 8.56 10.2 11.3
5.0-6.0 11.08 15.9 17.6
6.0-8.0 17.34 22.9 25.4
8.0-10 29.25 40.6 45

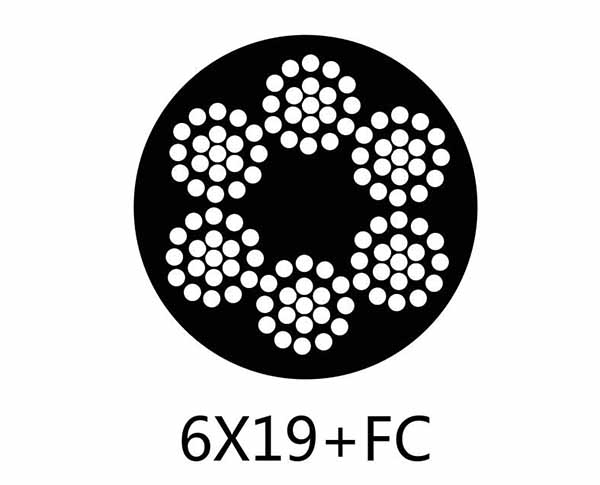

6×19+FC
PVC/PP/PE
3.0-4.0 3.91 4.9 5.43
3.0-5.0 4.93 4.9 5.43
4.0-5.0 6.56 8.7 9.63
4.0-6.0 7.82 8.7 9.63
5.0-6.0 9.9 13.6 15.1
6.0-8.0 15.64 19.6 21.7
8.0-10 26.24 34.8 38.5
10-12 39.6 54.4 60.2
12-14 55.74 78.3 86.7

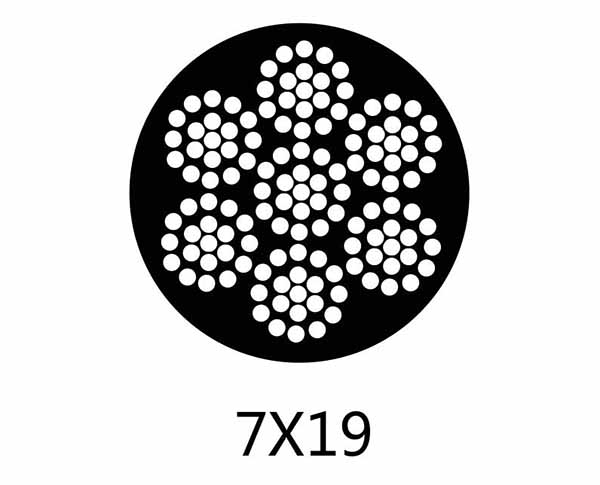

7×19
PVC/PP/PE
3.0-4.0 4.23 5.29 5.86
3.0-5.0 5.25 5.29 5.86
4.0-5.0 7.12 9.4 10.4
4.0-6.0 8.38 9.4 10.4
5.0-6.0 10.78 14.7 16.3
6.0-8.0 16.9 21.2 23.5
8.0-10 28.48 37.6 41.6
10-12 43.1 58.8 65.1
12-14 60.8 84.6 93.7

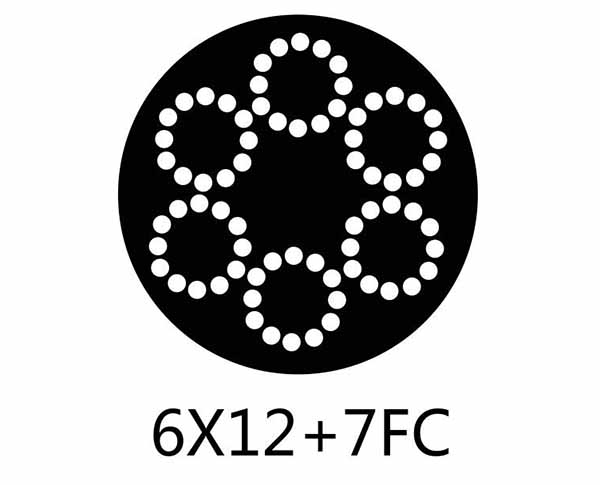

6×12+7FC
PVC/PP/PE
2.0-3.0 1.57 1.48 1.64
3.0-4.0 3.06 3.33 3.69
3.0-5.0 4.08 3.33 3.69
4.0-5.0 5.04 5.92 6.56
4.0-6.0 6.29 5.92 6.56
6.0-8.0 12.22 13.3 -
8.0-10 20.2 23.7 -

Request a Quote
