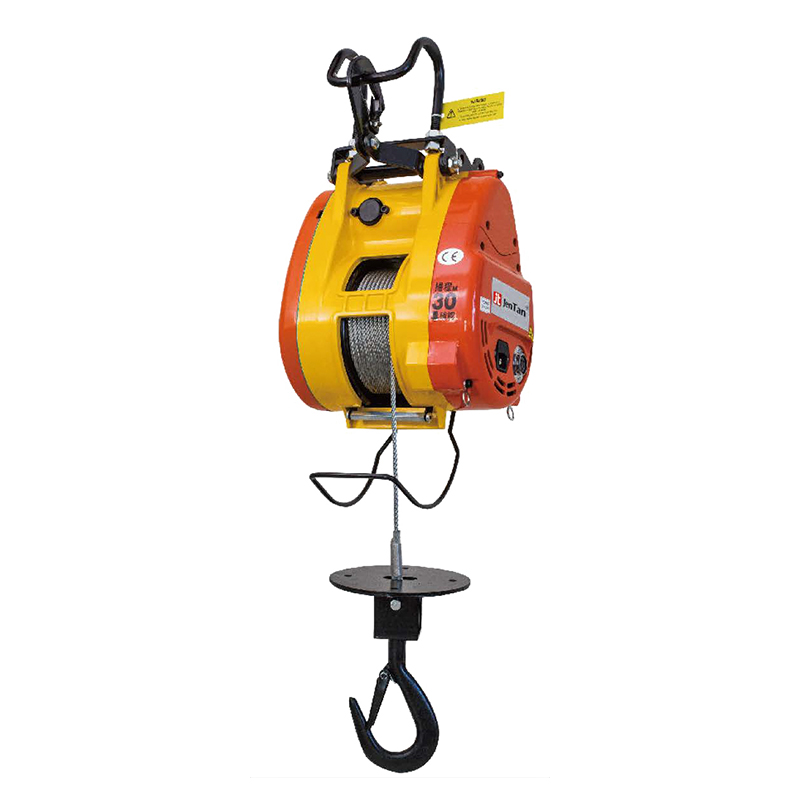

JTXG-M Electric Mini Winch with AC Contactor
Product Overview
The JTXG-M Electric Mini Winch with AC Contactor is designed for light-duty lifting applications requiring enhanced electrical control and component protection.
Unlike the basic S and T models, the M-series incorporates an AC contactor into the control circuit. The contactor controls motor switching instead of allowing the pendant micro switch to directly handle the main operating current.
This design helps reduce electrical arcing, overheating and mechanical stress on the control switch, particularly where the power supply may fluctuate during operation.
With its compact structure and steel wire rope lifting system, the JTXG-M provides a practical solution for workshops, warehouses, maintenance areas and light construction applications.
Product Features

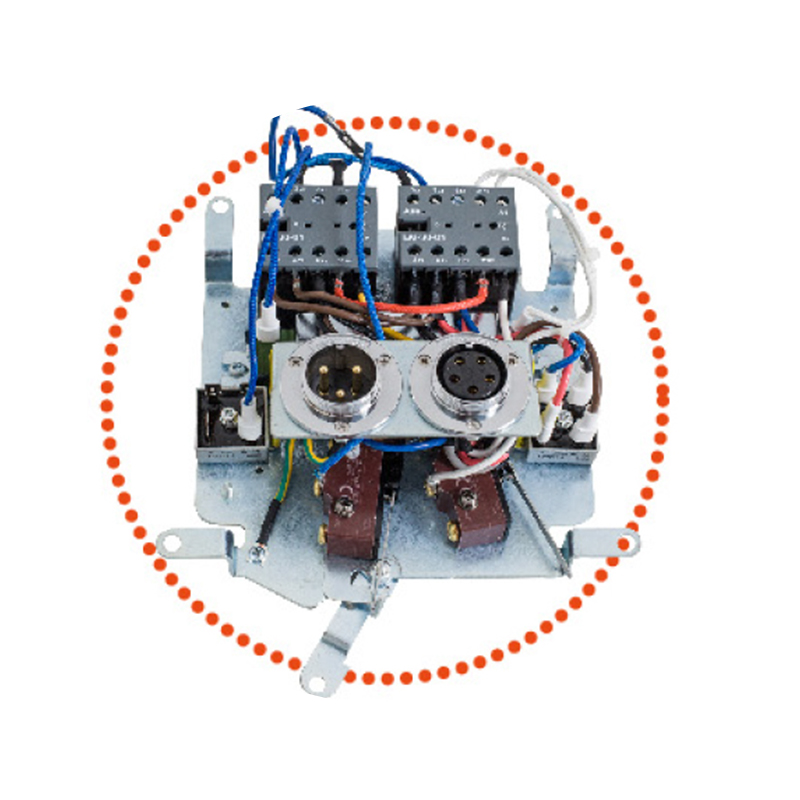

Built-in AC Contactor
An AC contactor is integrated into the control circuit to manage motor switching and reduce the electrical load carried directly by the pendant control switch.
Improved Electrical Protection
The contactor-based control system helps reduce electrical arcing and excessive current stress on control components during frequent starting and stopping.
Longer Micro Switch Service Life
By reducing the current passing directly through the micro switch, the design helps minimise overheating and contact fatigue, extending the working life of the control components.
Stable Motor Control
Electromagnetic switching provides consistent motor start and stop control, particularly in applications where supply voltage may fluctuate.
Steel Wire Rope Lifting System
The mini electric wire rope winch uses steel wire rope for compact and practical light-duty lifting.
Compact Design
The small overall dimensions make installation convenient in workshops, warehouses and other locations where installation space is limited.

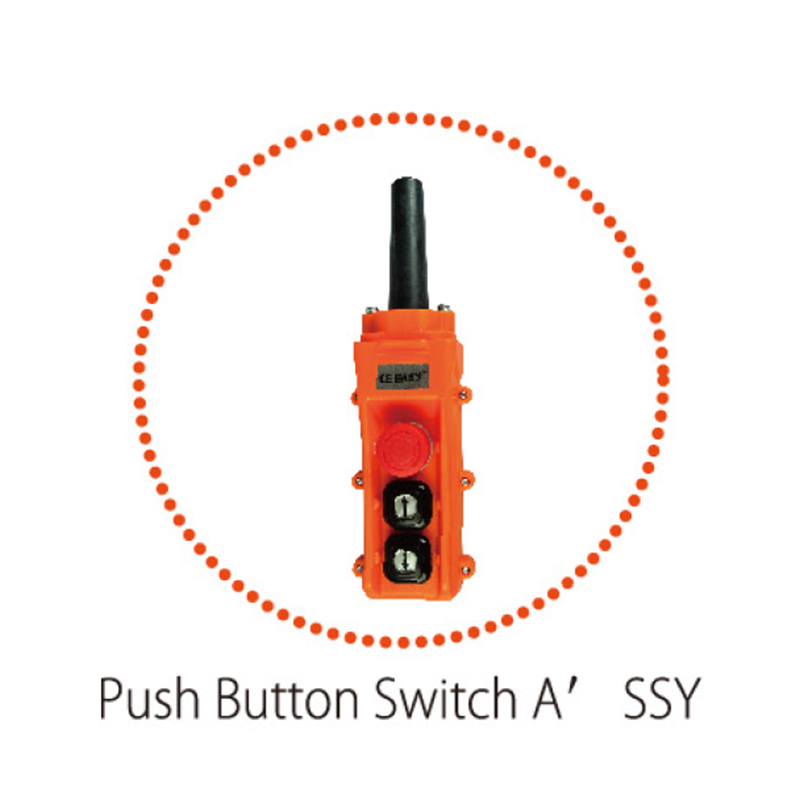

Simple Pendant Operation
The pendant controller provides convenient up and down operation while the internal contactor handles the main switching load.
Easy Installation
Compact construction and plug-in cable connections simplify installation and everyday operation.
JTXG-S, JTXG-T and JTXG-M Comparison
The JTXG series provides different configurations for different operating requirements.
JTXG-S
Economical single-port model designed for basic light-duty lifting requirements.
JTXG-T
Dual-port model with separate power and control cable connections for greater operating flexibility.
JTXG-M
Contactor-equipped model designed for improved electrical control and better protection of the pendant switching components.
The JTXG-M is recommended where users place greater importance on electrical component protection, frequent switching or more stable control performance.
Application Scenarios
The JTXG-M Electric Mini Winch is suitable for:
• Workshop lifting
• Warehouse material handling
• Equipment maintenance
• Light industrial lifting
• Construction material lifting
• Component installation and positioning
• Garage and service applications
Its contactor-based control system makes it particularly suitable for applications involving frequent starting and stopping or where improved protection of electrical control components is required.
