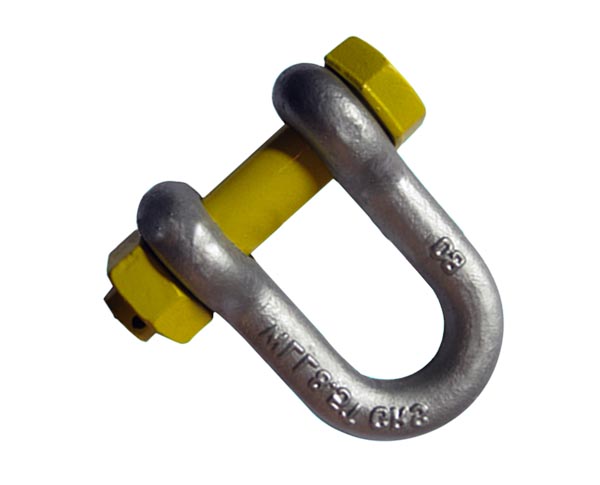

JTR-SE18 Australian Type Grade S Marine Towing Dee Shackle With Safety Pin

JTR-SE18
Australian Type Grade S Marine Towing Dee Shackle With Safety Pin
MATERIAL: Body,Nut and Cotter Pin was carbon steel,BOLT was alloy steel
CONSTRUCTION: Quenched and Tempered
STANDARD: AS 2741-2002
GRADE: S(6)


Product Code working load limit diameter bow (mm) width inside (mm) diameter pin (mm)
JTR-SE1801 WLL0.33T 5 10 6
JTR-SE1802 WLL0.5T 6 12 8
JTR-SE1803 WLL0.75T 8 13 10
JTR-SE1804 WLL1T 10 17 11
JTR-SE1805 WLL1.5T 11 18 13
JTR-SE1806 WLL2T 13 21 16
JTR-SE1807 WLL3.25T 16 27 19
JTR-SE1808 WLL4.75T 19 32 22
JTR-SE1809 WLL6.5T 22 37 25
JTR-SE1810 WLL8.5T 25 43 29
JTR-SE1811 WLL9.5T 29 46 32
JTR-SE1812 WLL12T 32 52 35
JTR-SE1813 WLL13.5T 35 57 38
JTR-SE1814 WLL17T 38 60 41
JTR-SE1815 WLL25T 44 73 51
JTR-SE1816 WLL35T 51 83 57
JTR-SE1817 WLL55T 63 105 68
JTR-SE1818 WLL85T 76 127 83
JTR-SE1819 WLL120T 89 146 95
JTR-SE1820 WLL150T 102 165 108

Request a Quote
