JTR-HL11 G100 Eye Sling Hook with Latch
JTR-HL11 G100 Eye Sling Hook with Latch | Premium Rigging Hardware
Product Overview
The JTR-HL11 is a high-performance Grade 100 (G100) eye sling hook designed for the most rigorous overhead lifting tasks. As a specialized lifting hoist manufacturer, Jentan has engineered this hook to offer superior strength and durability compared to standard G80 components, making it an essential part of any heavy-duty industrial chain hoist system.
Key Features
-
Grade 100 Strength: Forged from premium alloy steel, providing significantly higher working load limits in a more efficient design.
-
Enhanced Safety Latch: Features a robust, spring-loaded safety latch that prevents accidental detachment of the load, ensuring secure operation.
-
Massive Load Capacity: Supports a wide range of industrial applications with Working Load Limits (W.L.L.) from 1.4t up to 39.3t.
-
Safety Factor: Engineered with a 4:1 safety factor, where the minimum breaking strength is four times the W.L.L..
-
Rigorous Testing: Each hook has a maximum proof load of 2.5 times the working load limit, with the W.L.L. permanently shown on the body for easy identification

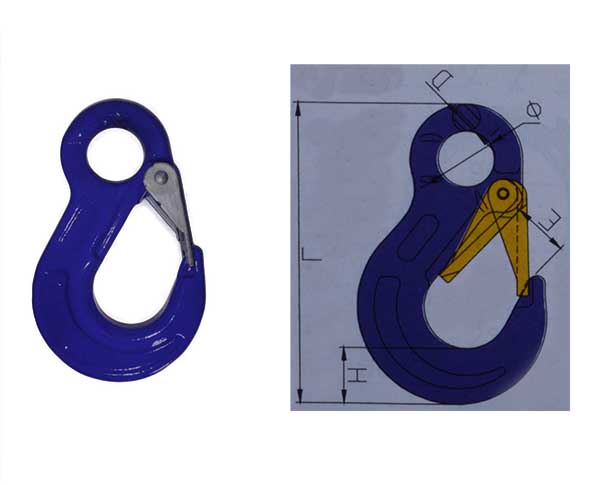

| Size | W.L.L | B.L | Dimension（mm） | Weight | ||||
| (t) | (t) | D | E | H | Φ | L | kg/pc | |
| 6-10 | 1.4 | 5.6 | 10 | 18.5 | 21 | 20.5 | 111 | 0.32 |
| 8-10 | 2.5 | 10 | 11 | 25 | 27.5 | 25 | 137.5 | 0.6 |
| 10-10 | 4 | 16 | 16 | 28 | 33 | 34 | 171.5 | 1.2 |
| 13-10 | 6.7 | 26.8 | 19 | 38 | 43.5 | 43 | 219 | 2.2 |
| 16-10 | 10 | 40 | 4.5 | 44 | 50 | 50 | 260 | 3.5 |
| 20-10 | 16 | 64 | 27 | 52 | 56 | 55 | 298 | 7.15 |
| 22-10 | 19 | 76 | 29 | 66 | 62 | 60 | 330 | 11.5 |
| 26-10 | 26.5 | 106 | 35 | 73 | 75 | 70 | 367 | 14 |
| 32-10 | 39.3 | 157.2 | 39 | 87 | 89 | 66 | 427 | 17.5 |
