JTR-HL10 G100 European Type Connecting Link
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

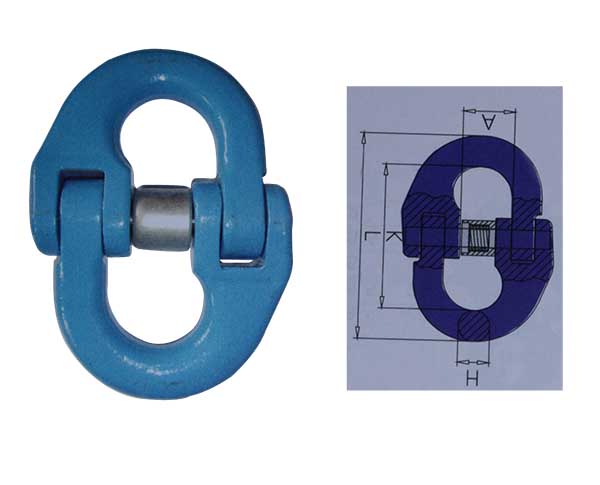

| Size | W.L.L | B.L | Dimension（mm） | Weight | |||
| (t) | (t) | H | A | K | L | kg/pc | |
| 6-10 | 1.4 | 5.6 | 7.6 | 14 | 44.5 | 60 | 0.1 |
| 8-10 | 2.5 | 10 | 10 | 18.5 | 61.5 | 84.5 | 0.22 |
| 10-10 | 4 | 16 | 12.6 | 23 | 72 | 97.2 | 0.45 |
| 13-10 | 6.7 | 26.8 | 16.8 | 27.5 | 89 | 127 | 1.15 |
| 16-10 | 10 | 40 | 21 | 33.5 | 103 | 145 | 1.75 |
| 20-10 | 16 | 64 | 24.5 | 42 | 116 | 175 | 2.7 |
| 22-10 | 19 | 76 | 27 | 48 | 135 | 193 | 4.02 |
| 26-10 | 26.5 | 106 | 32 | 61 | 164 | 228 | 5.1 |
| 32-10 | 39.3 | 157.2 | 40 | 80 | 194 | 274 | 8.05 |
