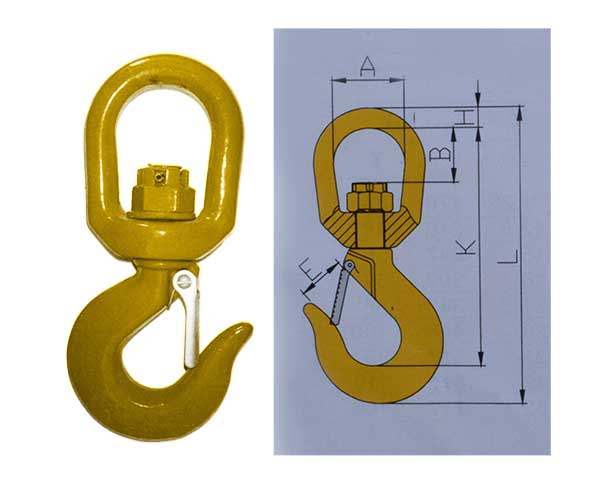

JTR-HL09 G80 Swivel Hook with Latch
360° Rotation: The swivel design allows the hook to rotate freely under load, preventing the twisting of chains in an industrial chain hoist system.
Enhanced Safety: Features a robust, spring-loaded safety latch that prevents the accidental release of slings or chains during operation.
Durable Construction: Manufactured from premium G80 alloy steel and heat-treated for maximum strength and impact resistance.
Load Capacity Range: Supports varied industrial requirements with Working Load Limits (W.L.L.) from 1.25t to 15t.
| G80 Swivel Hook with Latch（TH-40） | |||
| Size | W.L.L | B.L | Weight |
| (t) | (t) | （kg/pc） | |
| 6-8 | 1.25 | 5 | 0.38 |
| 7/8-8 | 2 | 8 | 1 |
| 10-8 | 3.2 | 12.8 | 1.2 |
| 13-8 | 5.4 | 21.6 | 2.08 |
| 16-8 | 8.2 | 32.8 | 4.45 |
| 20-8 | 12.5 | 50 | 7.4 |
| 22-8 | 15 | 60 | 10.6 |
