JTR-HL08 G80 Clevis Choke Link
The JTR-HL08 (TH-12) G80 Clevis Choke Link is a specialized rigging component for adjusting and securing lifting chains:
-
Direct Chain Attachment: The clevis design allows for a secure, direct connection to Grade 80 lifting chains without extra connectors, optimizing your industrial chain hoist setup.
-
High Load Capacity: Precision-engineered for heavy-duty tasks with a Working Load Limit (W.L.L.) from 1.12t to 15t.
-
Rugged Construction: Drop-forged from premium alloy steel and heat-treated to meet G80 standards for superior strength and durability.
-
Safety Assurance: Every link is tested to a 4:1 safety factor (Breaking Load is 4x W.L.L.), ensuring maximum reliability during overhead lifting.
-
Versatile Sizing: Available in multiple sizes (from 6-8 to 22-8) to fit various industrial chain diameters and rigging requirements.
| G80 Clevis Choke Link（TH-12） | |||||||||

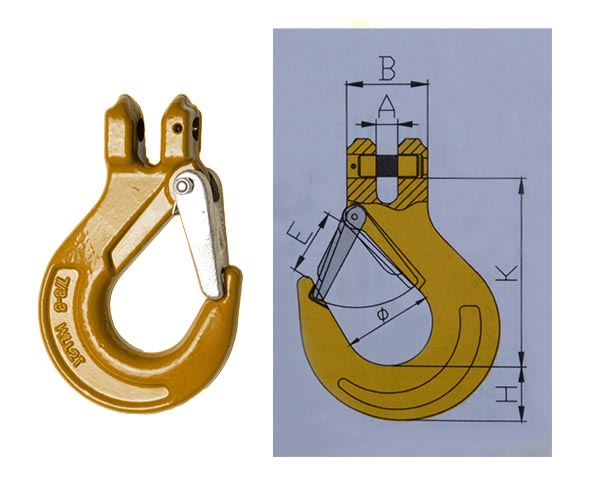

| Size | W.L.L | B.L | Dimension（mm） | Weight | |||||
| (t) | (t) | A | B | Φ | H | K | E | （kg/pc） | |
| 6-8 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 | 0.32 |
| 7/8-8 | 2 | 8 | 9.5 | 37 | 37 | 32.5 | 85.5 | 29 | 0.52 |
| 10-8 | 3.15 | 12.8 | 13 | 49 | 46 | 35 | 104 | 39 | 1.05 |
| 13-8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47 | 2 |
| 16-8 | 8 | 32 | 22.5 | 70.5 | 60 | 54 | 150 | 55 | 3.7 |
| 20-8 | 12.5 | 50 | 24 | 77 | 79 | 58 | 180 | 61 | 6 |
| 22-8 | 15 | 60 | 27 | 91 | 101 | 62 | 213 | 72 | 10.4 |
