JTR-HL05 G80 European Type Clevis Self-Locking Hook
The JTR-HL05 (TH-82) G80 Clevis Self-Locking Hook provides a safe and efficient connection for industrial rigging:
-
Clevis Connection: Designed for direct attachment to G80 lifting chains without the need for additional connecting links, optimizing your industrial chain hoist setup.
-
Safety Lock Mechanism: Features a reliable self-locking trigger that automatically closes under load, ensuring the hook remains securely locked during the entire lift.
-
High-Strength Forging: Manufactured from high-grade alloy steel and heat-treated to meet G80 standards for superior impact and wear resistance.
-
Broad Load Capacity: Offers a versatile range of sizes (6-8 to 26-8) with Working Load Limits (W.L.L.) from 1.12t to 21.2t.
-
Trusted Quality: As an experienced lifting hoist manufacturer, Jentan tests every hook to a 4:1 safety factor, providing reliable performance in construction, mining, and manufacturing.

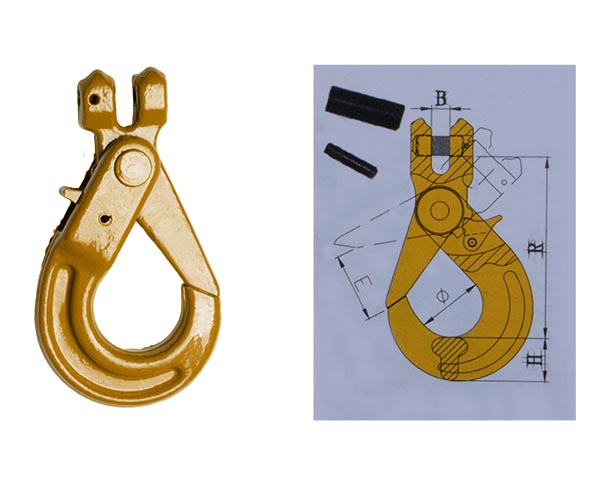

| G80 European Type Clevis Self-Locking Hook（TH-82） | ||||||||
| Size | W.L.L | B.L | Dimension（mm） | Weight | ||||
| (t) | (t) | E | B | H | Φ | R | （kg/pc） | |
| 6-8 | 1.12 | 4.48 | 29 | 8.5 | 19.5 | 34 | 95.5 | 0.5 |
| 7/8-8 | 2 | 8 | 34 | 9.5 | 24 | 46 | 121 | 0.8 |
| 10-8 | 3.15 | 12.8 | 44 | 12 | 28.5 | 56 | 146 | 1.5 |
| 13-8 | 5.3 | 21.2 | 52 | 15 | 40 | 69 | 182 | 2.8 |
| 16-8 | 8 | 32 | 60 | 18 | 50.5 | 86 | 218 | 5.6 |
| 20-8 | 12.5 | 50 | 83 | 25 | 55 | 98 | 240 | 7.5 |
| 22-8 | 15 | 60 | 88 | 25.5 | 67 | 100 | 276.5 | 11.5 |
| 26-8 | 21.2 | 84.8 | 95.5 | 30 | 75 | 110 | 310.5 | 18.5 |
