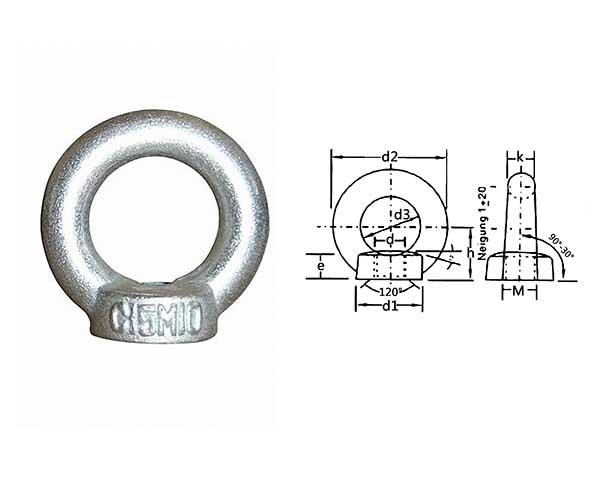

JTR-BN05 DIN582 Ringr Nut
|
Product Code |
Size (in) |
W．L．L (ton.) |
Dimensions(in) |
Weight Each (kg／pc) |
|||||
| d1 | d2 | d3 | e | h | k | ||||
| JTR01-B0501 |
M6 |
0.07 | 20 | 36 | 20 | 8.5 | 18 | 8 | 0.05 |
| JTR01-B0502 |
M8 |
0.14 | 20 | 36 | 20 | 8.5 | 18 | 8 | 0.05 |
| JTR01-B0503 |
M10 |
0.23 | 25 | 45 | 25 | 10 | 22 | 10 | 0.09 |
| JTR01-B0504 |
M12 |
0.34 | 30 | 54 | 30 | 11 | 26 | 12 | 0.16 |
| JTR01-B0505 |
M16 |
0.7 | 35 | 63 | 35 | 13 | 30 | 14 | 0.24 |
| JTR01-B0506 |
M20 |
1.2 | 40 | 72 | 40 | 16 | 35 | 16 | 0.36 |
| JTR01-B0507 |
M22 |
1.5 | 45 | 81 | 45 | 18 | 40 | 18 | 0.58 |
| JTR01-B0508 |
M24 |
1.8 | 50 | 90 | 50 | 20 | 45 | 20 | 0.72 |
| JTR01-B0509 |
M27 |
2.5 | 50 | 90 | 50 | 20 | 45 | 20 | 0.7 |
| JTR01-B0510 |
M30 |
3.6 | 65 | 108 | 60 | 25 | 55 | 24 | 1.32 |
| JTR01-B0511 |
M33 |
4.3 | 65 | 108 | 60 | 25 | 55 | 24 | 1.3 |
| JTR01-B0512 |
M36 |
5.1 | 75 | 126 | 70 | 30 | 65 | 28 | 2.08 |
| JTR01-B0513 |
M39 |
6.1 | 75 | 126 | 70 | 30 | 65 | 28 | 2.02 |
