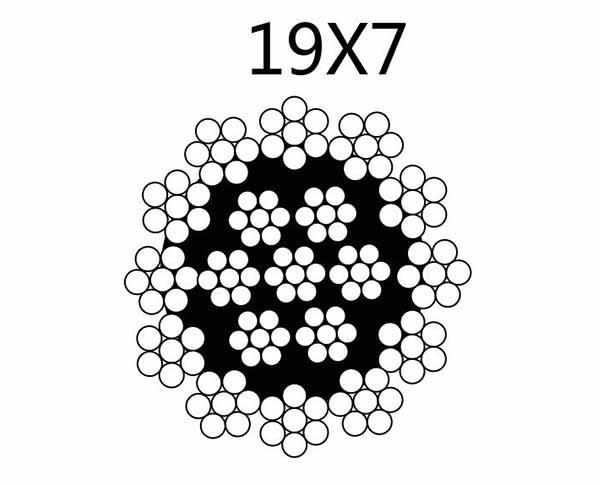

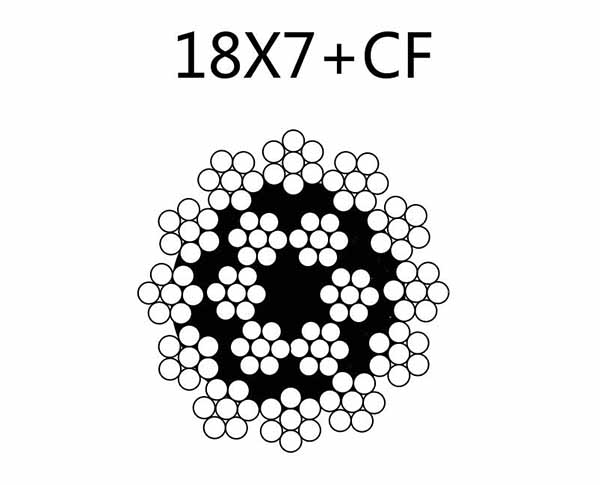

DIN3069，18×7+FC，19×7
| Specification：DIN3069，18×7+FC，19×7 | ||||||
| Usage：Vertical Well,Tramway,Crane | ||||||
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | ||||
| Minimum Breaking strength(KN) | ||||||
| kg/100m | 1570N/mm² | 1770N/mm² | ||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 4 | 6.12 | 6.43 | - | - | 9.02 | 9.29 |
| 5 | 9.57 | 10 | - | - | 14.1 | 14.5 |
| 6 | 13.8 | 14.5 | - | - | 20.3 | 20.9 |
| 7 | 18.8 | 19.7 | - | - | 27.6 | 28.5 |
| 8 | 24.5 | 25.7 | 32 | 33 | 36.1 | 37.2 |
| 9 | 31 | 32.6 | 40.5 | 41.7 | 45.7 | 47 |
| 10 | 38.3 | 40.2 | 50 | 51.5 | 56.4 | 58.1 |
| 11 | 46.3 | 48.6 | 60.5 | 62.3 | 68.2 | 70.3 |
| 12 | 55.1 | 57.9 | 72 | 74.2 | 81.2 | 83.6 |
| 13 | 64.7 | 67.9 | 84.5 | 87.1 | 95.3 | 98.1 |
| 14 | 75 | 7.8 | 98 | 101 | 111 | 114 |
| 16 | 98 | 103 | 128 | 132 | 144 | 149 |
| 18 | 124 | 130 | 162 | 167 | 183 | 188 |
| 20 | 153 | 161 | 200 | 206 | 226 | 232 |
| 22 | 185 | 195 | 242 | 249 | 273 | 281 |
| 24 | 220 | 231 | 288 | 297 | 325 | 335 |
| 26 | 259 | 272 | 338 | 348 | 381 | 393 |
